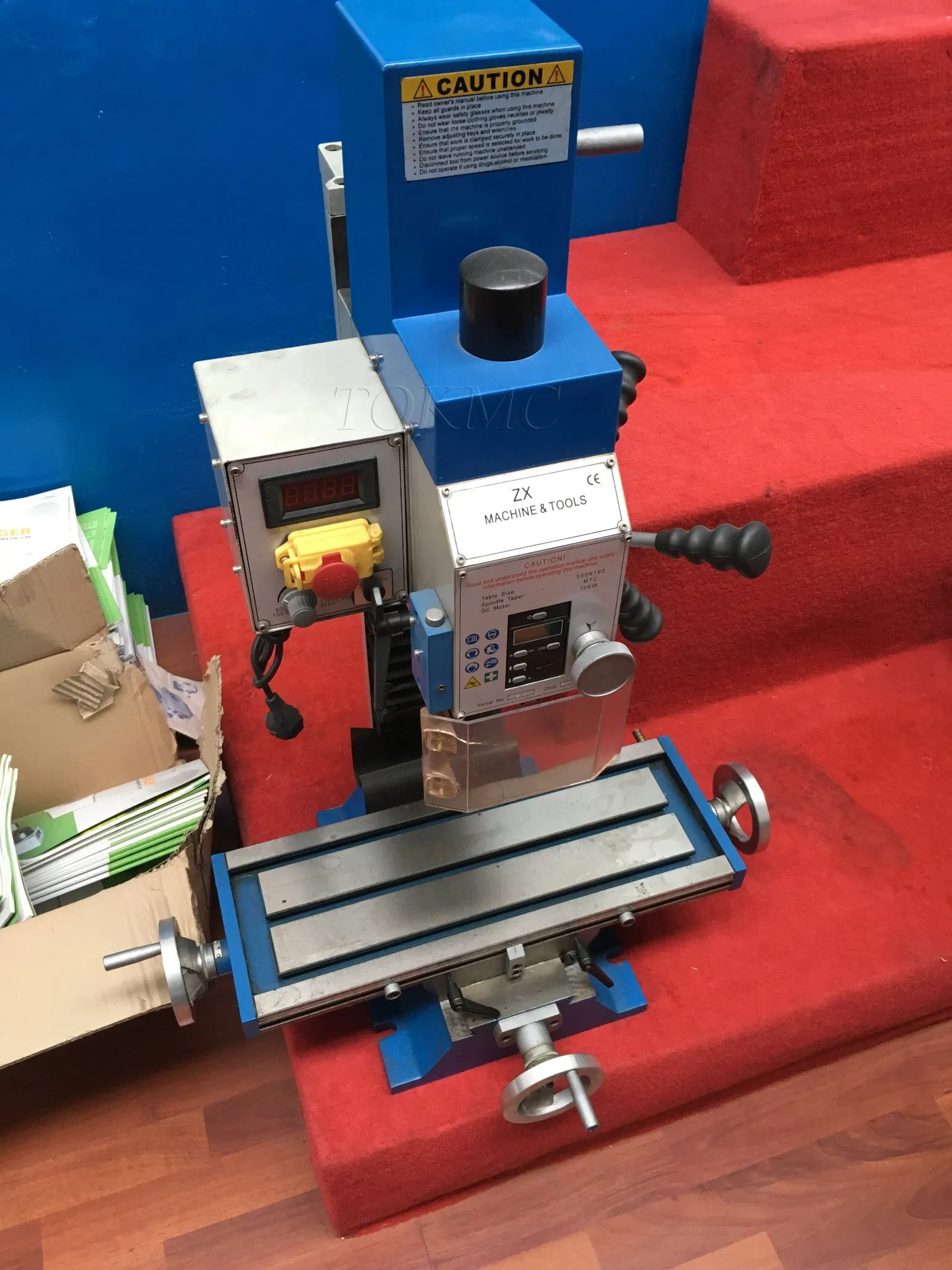

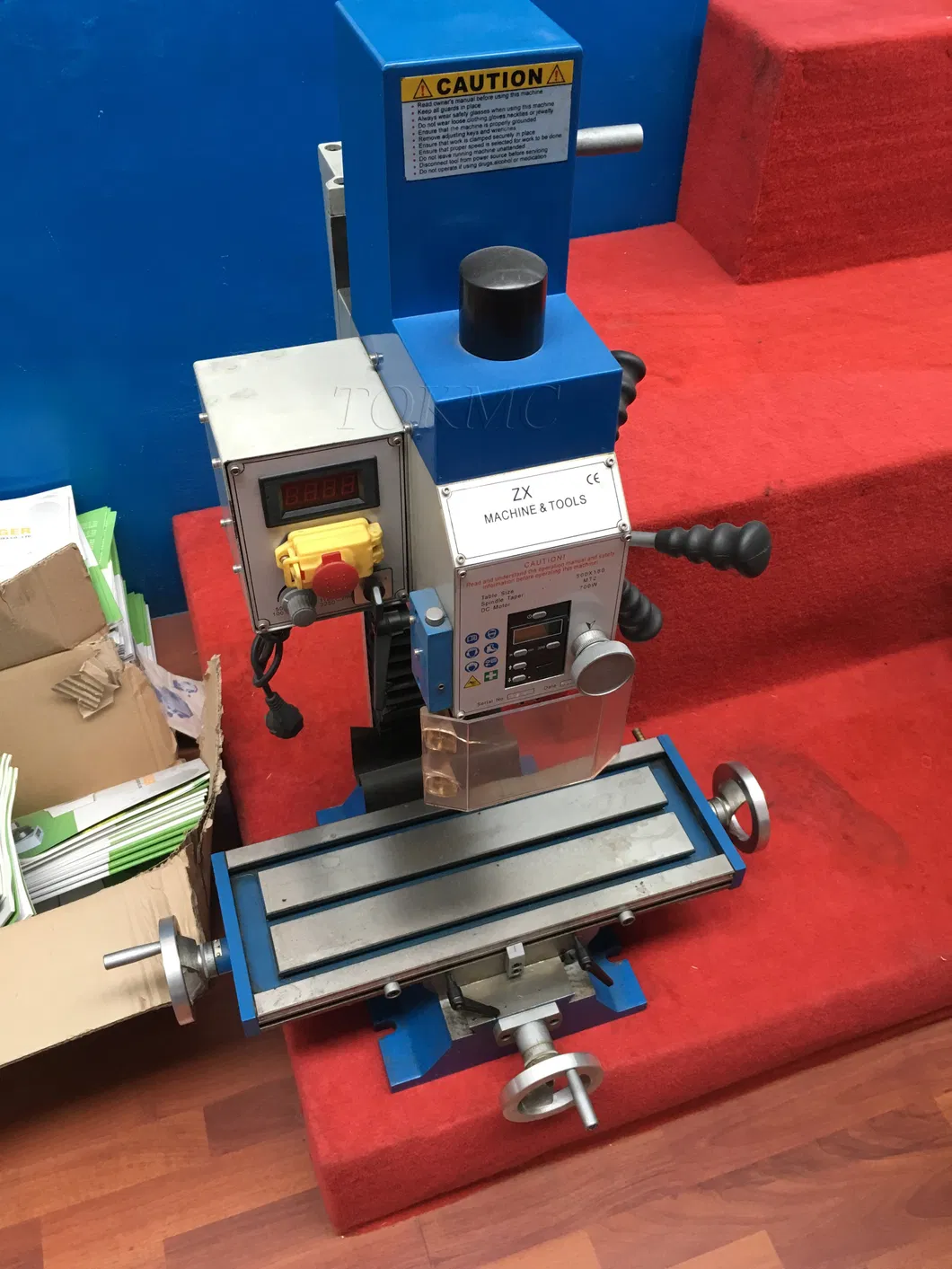

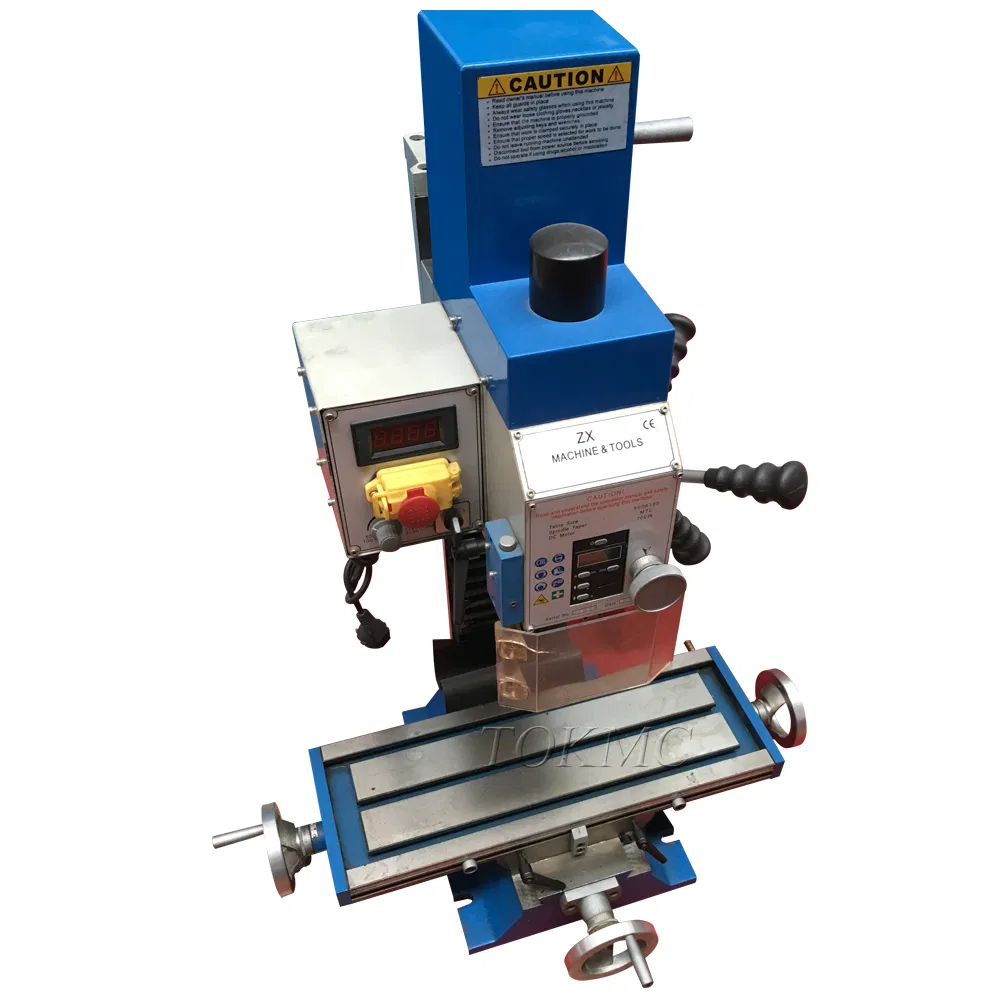

Milling and Drilling Machine Zx20
Product DescriptionBench milling drilling machine SpecificationunitZx16Zx20Zx25Max.drilling diametermm162025Max.vertical milling diametermm162025Max.face milling diametermm525252Spindle taper MT2MT2MT3/M12Spindle travel mm525252Spindle speedrpm50-250050-250050-2500Spindle box tilting ±90&......
Send Inquiry
Product Description
Bench milling drilling machine
| Specification | unit | Zx16 | Zx20 | Zx25 |
| Max.drilling diameter | mm | 16 | 20 | 25 |
| Max.vertical milling diameter | mm | 16 | 20 | 25 |
| Max.face milling diameter | mm | 52 | 52 | 52 |
| Spindle taper | MT2 | MT2 | MT3/M12 | |
| Spindle travel | mm | 52 | 52 | 52 |
| Spindle speed | rpm | 50-2500 | 50-2500 | 50-2500 |
| Spindle box tilting | ±90 | ±90 | ±90 | |
| Spindle box travel manual | mm | 175 | 185 | 185 |
| Table size | mm | 500x140 400x120 | 500x180 700x180 | 700x180 |
| Table travel X,Y axes | mm | 320/220x160 | 320/520x160 | 520x160 |
| Z axis travel | mm | 220 | 280 | 280 |
| T-slot | mm | 10 | 12 | 12 |
| Motor | W | 600 | 700 | 900 |
| Net Weight | kg | 78 | 103 | 130 |
| Package size | mm | 670x550x760 | 500x450x760 | 870x550x860 |
Standard Accessories
| Drill chuck 3-16/ B16 |
| Drawbar |
| Arbor MT2/B16-M10 |
| Digital Depth Ruler |
| Spindle Cover with Micro Switch |
| Toolbox and tools |
| Tapping Function |
| Keyless Drill Chuck 3-16mm |
| ER 25 Collet Chucks MT2(8pcs) |
| Vice BMS80 |
| HSS 10 pcs Drill sets |
| End Mill Sets 7pcs 4-16mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M10 |
| Oil Tray |
| Stand |
| Luxury Stand |
