New Heavy Duty Knee-Type Milling Machine

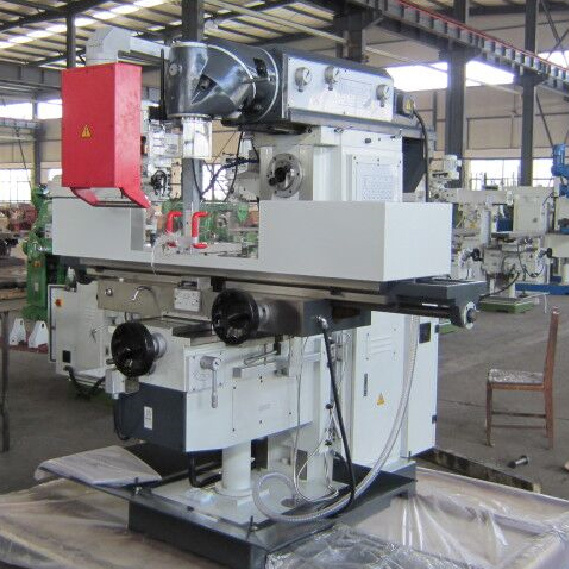

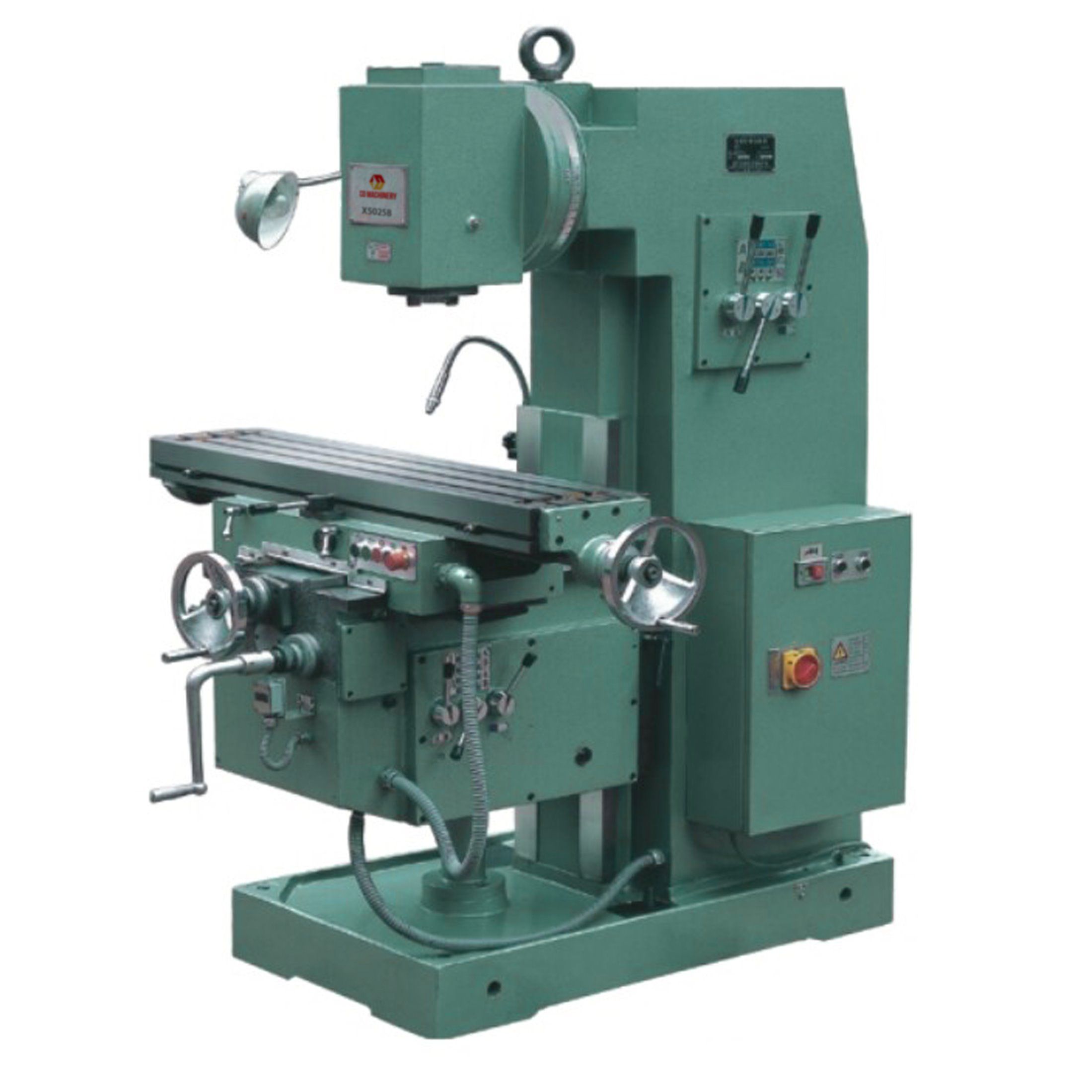

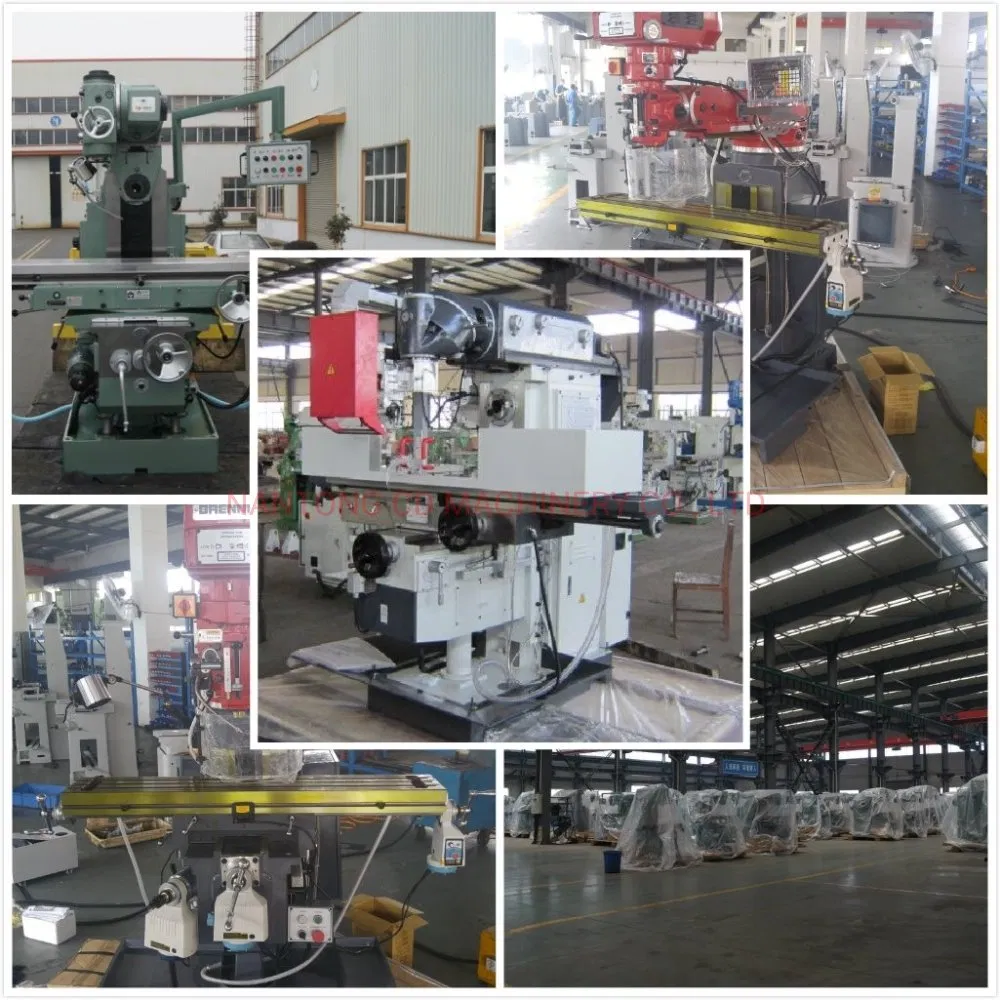

1.Pictures2. ParametersCODEITEMUNITDETAILS1WORKTABLE(WIDTH×LENGTH)mm420×18002T SLOTSmm3×183DISTANCE BETWEEN T SLOTSmm804MAX.LOAD BEARING OF WORKTABLEkg500TRAVEL5X AXIS (MANUAL/POWER)mm1200/11806Y AXIS (MANUAL/POWER)mm360/2807Z AXIS (MANUAL/POWER)mm410/400SPINDLE8SPINDLE......
Send Inquiry
Product Description
2. Parameters
CODE | ITEM | UNIT | DETAILS |
1 | WORKTABLE(WIDTH×LENGTH) | mm | 420×1800 |
2 | T SLOTS | mm | 3×18 |
3 | DISTANCE BETWEEN T SLOTS | mm | 80 |
4 | MAX.LOAD BEARING OF WORKTABLE | kg | 500 |
TRAVEL | |||
5 | X AXIS (MANUAL/POWER) | mm | 1200/1180 |
6 | Y AXIS (MANUAL/POWER) | mm | 360/280 |
7 | Z AXIS (MANUAL/POWER) | mm | 410/400 |
SPINDLE | |||
8 | SPINDLE HOLE TAPER | 7:24, NO:50 | |
9 | SPINDLE SPEED STEPS | 18 | |
10 | SPINDLE SPEED RANGE | r/min | 30-1500 |
11 | ARBOR DIAMETER | mm | φ32,50 |
FEED | |||
12 | FEED SPEED STEPS | 18 | |
13 | FEED SPEED RANGE:LONGITUDINAL X | mm/min | 22-1100 |
14 | FEED SPEED RANGE:CROSS Y | mm/min | 22-1100 |
15 | FEED SPEED RANGE:VERTICAL Z | mm/min | 8.3-410 |
16 | RAPID FEED RANGE:LONGITUDINAL X | mm/min | 2400 |
17 | RAPID FEED RANGE:CROSS Y | mm/min | 2400 |
18 | RAPID FEED RANGE:VERTICAL Z | mm/min | 900 |
POWER SOURCE | |||
19 | MAIN MOTOR POWER | kw | 11 |
20 | FEED MOTOR POWER | kw | 3 |
21 | VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT) | V/hz | 380/50 |
OTHERS | |||
23 | DISTANCE FROM SPINDLE CENTER TO ARM | mm | 155 |
24 | DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY | mm | 235-535 |
25 | DISTANCE FROM SPINDLE CENTER TO WORKTABLE SURFACE | mm | 50-460 |
26 | MACHINE DIMENSION | mm | 2327×2067×1720 |
27 | PACKAGE DIMENSION | mm | 2470×2300×2300 |
28 | MACHINE WEIGHT | kg | 4200 |

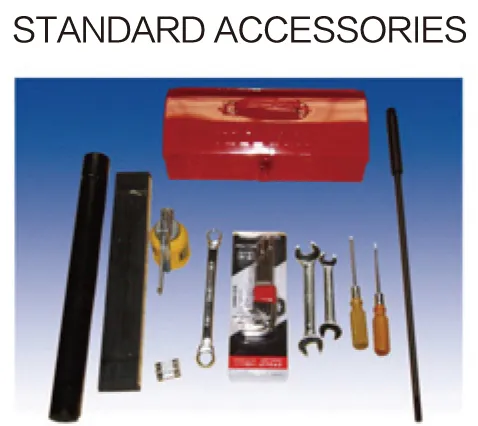

3. Standard Accessories
| 1 | Hand lube pump |
| 2 | Drawbar |
| 3 | Toolbox with tools |
| 4 | Way cover |
| 5 | Operation manual |
| 6 | Simplified electrical box |
| 7 | Work light |

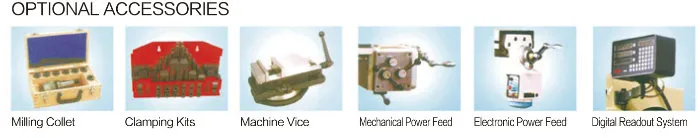

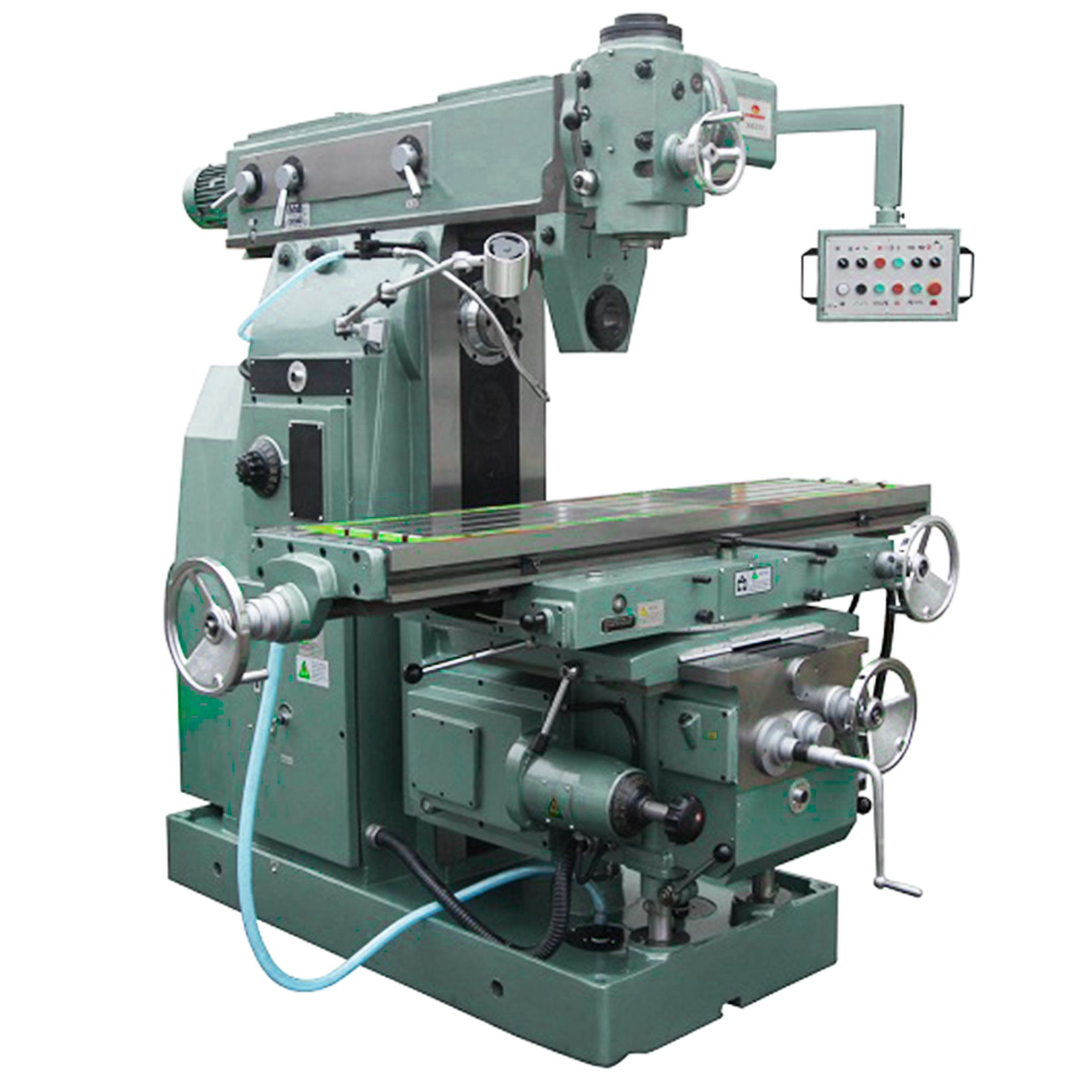

4.Optional Accessories
5. Feature

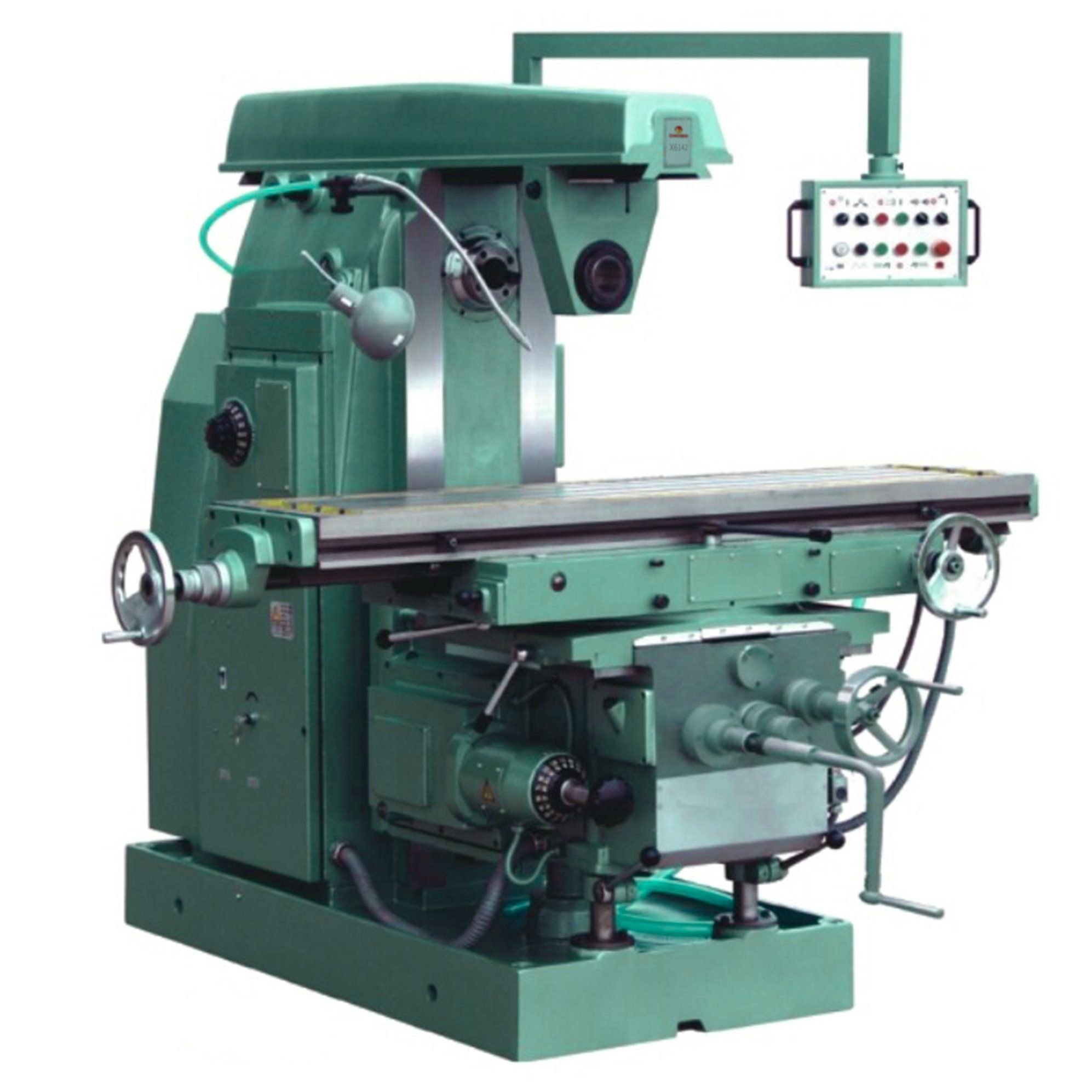

♥Product Overview
☆X6142 horizontal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆The worktable apply to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
6. Dellivery Picture
