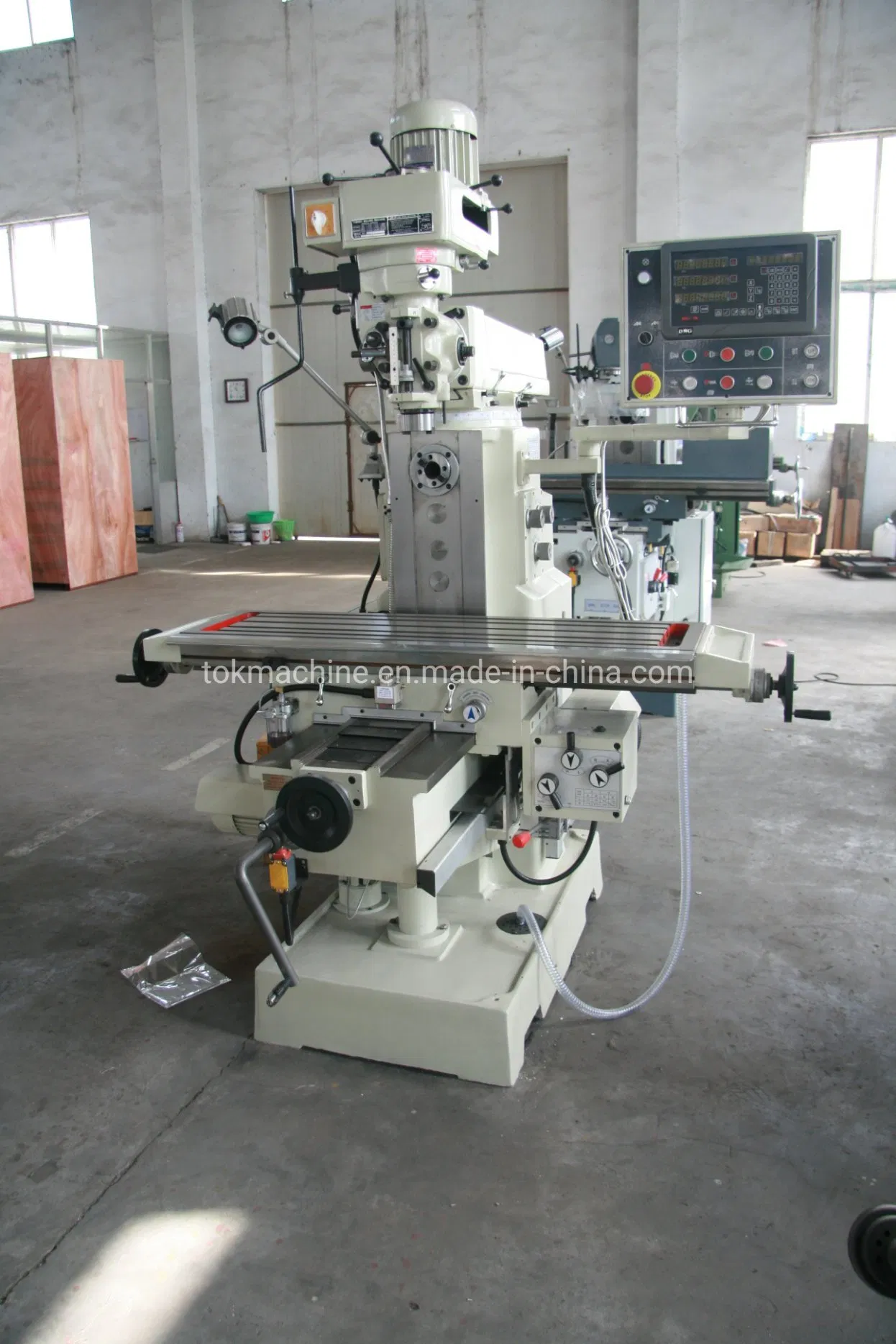

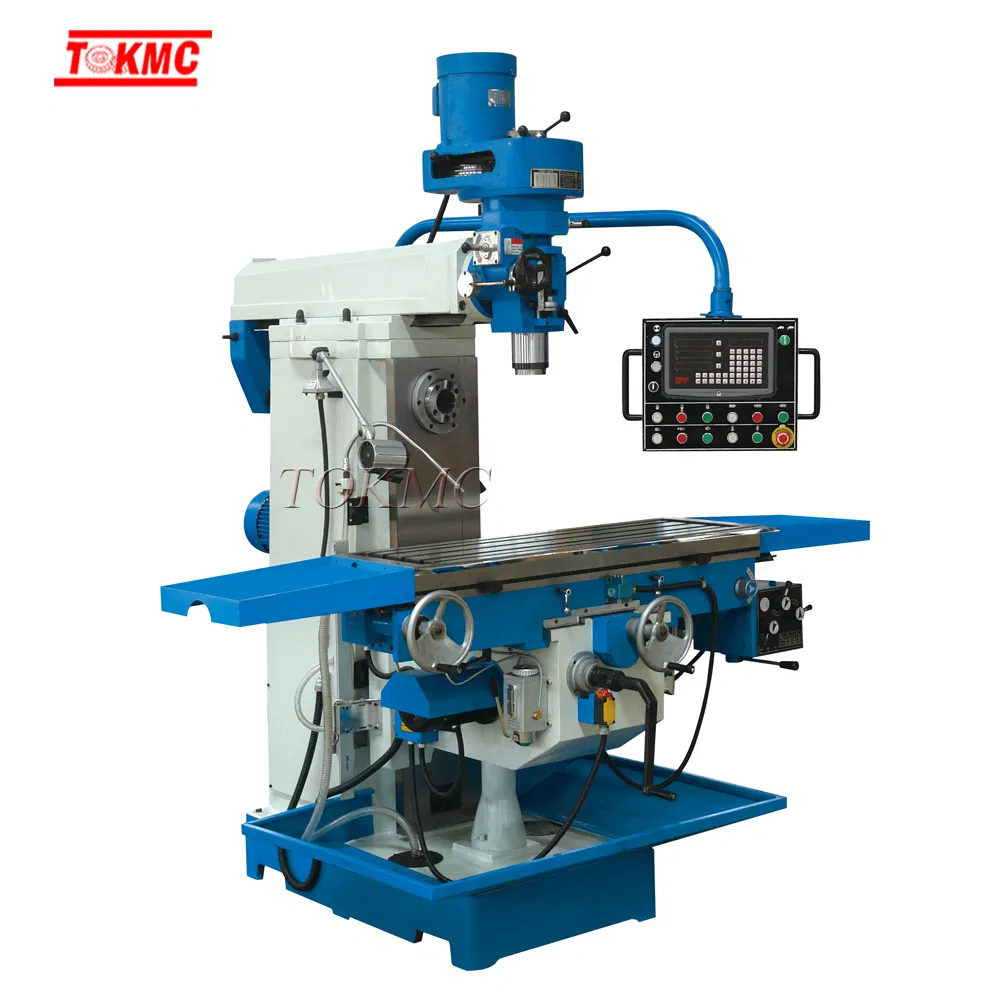

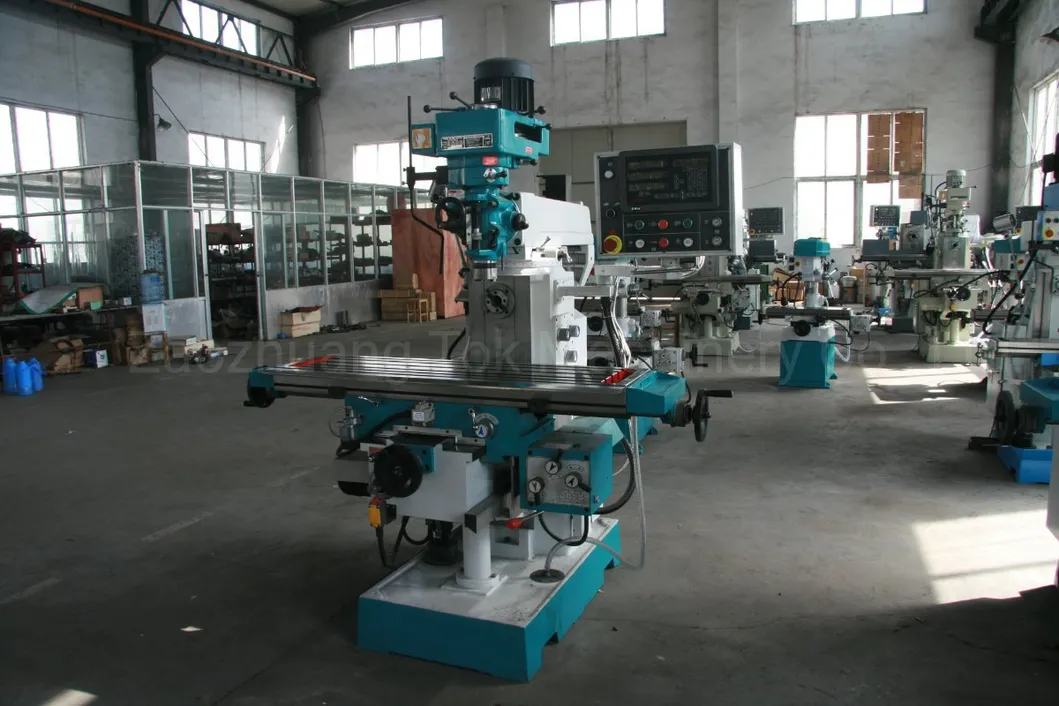

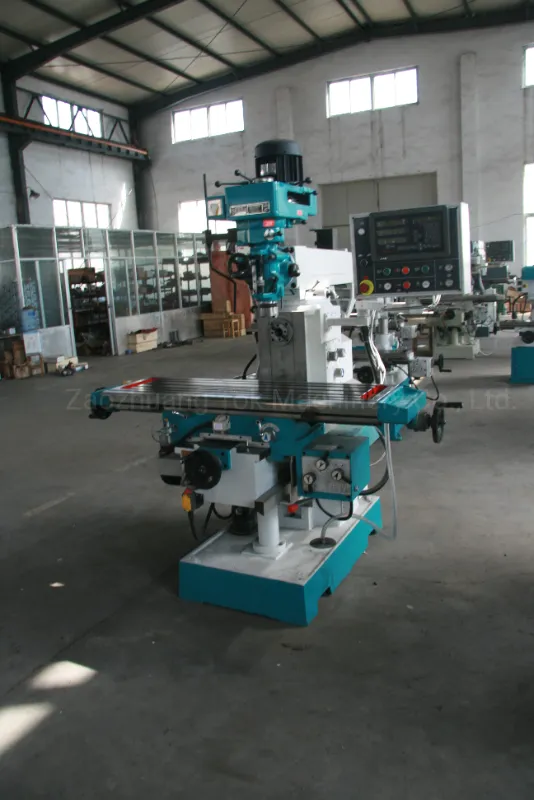

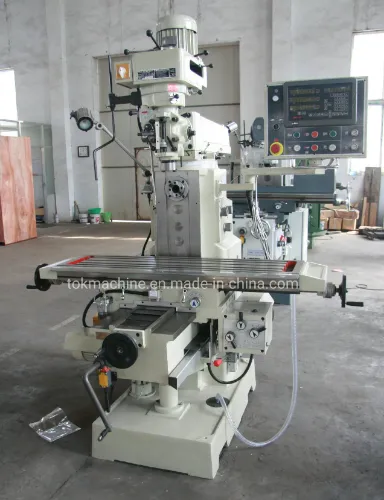

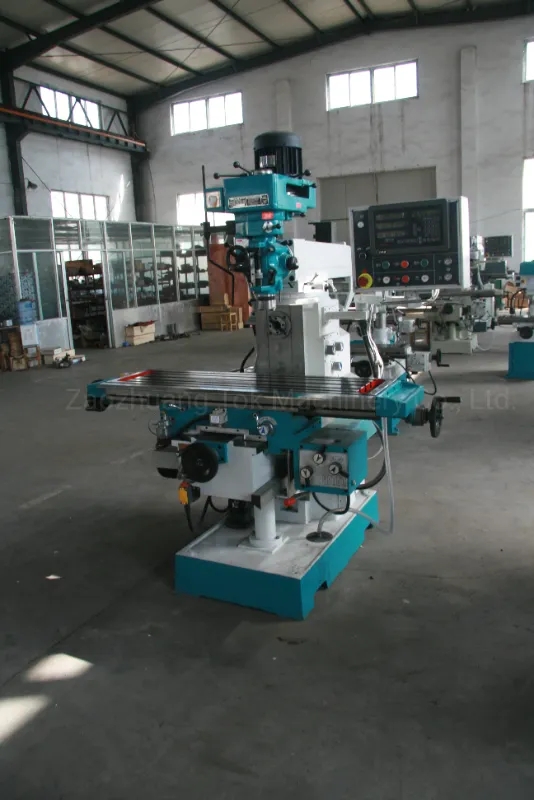

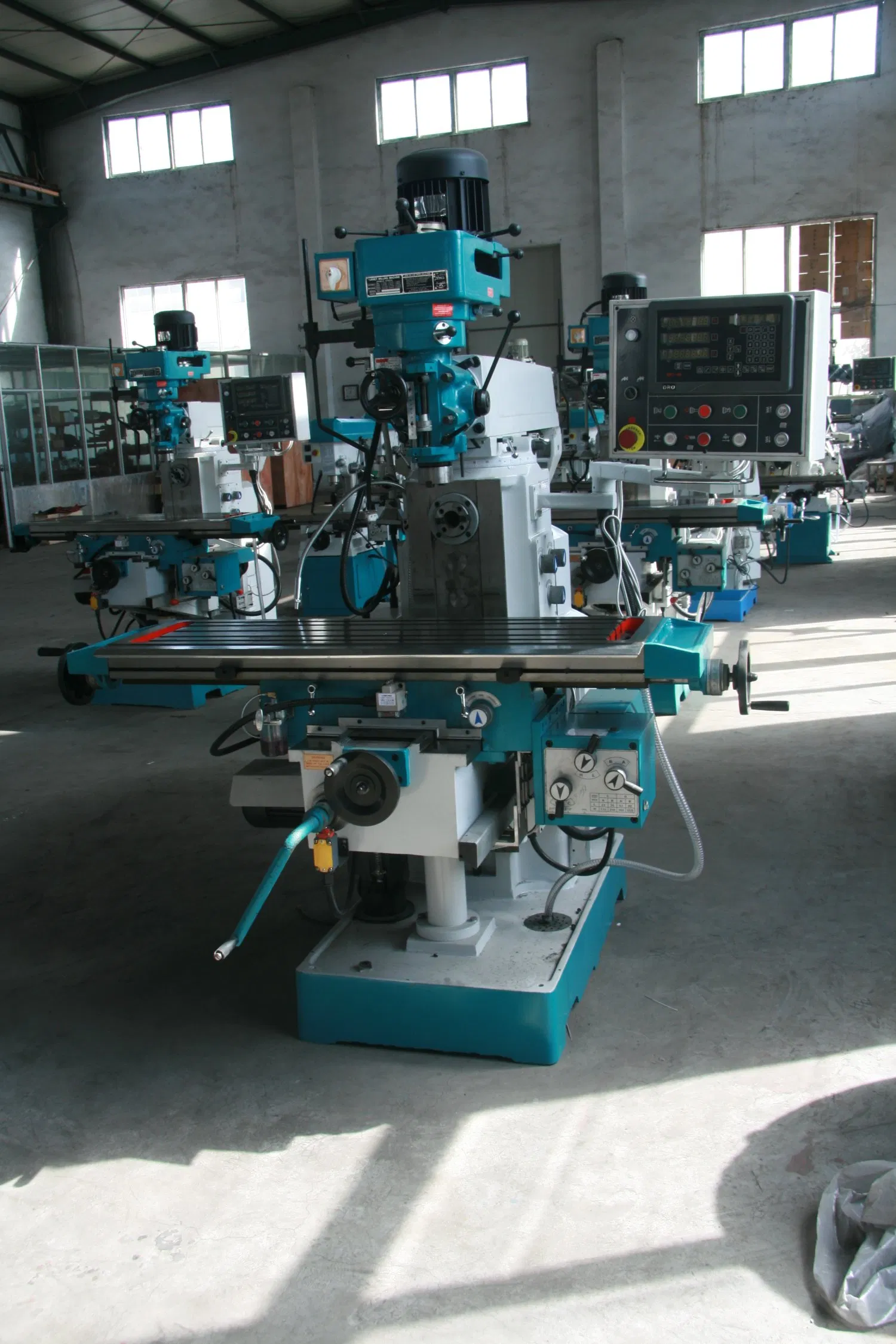

Radial Milling Machine Knee Type Milling Machine
milling machineryExchange with Taiwan milling head (5HP)Full gear head ,spindle taperISO50Extended length and strong saddle,more rigid Milling head swivels ±45°.Rectangular table guide ways with high stability.Hardened and ground table surface.Automatic feeds on X,Y axes,motorized......
Send Inquiry
Product Description
milling machinery
•Exchange with Taiwan milling head (5HP)
•Full gear head ,spindle taperISO50
•Extended length and strong saddle,more rigid
•Milling head swivels ±45°.
•Rectangular table guide ways with high stability.
•Hardened and ground table surface.
•Automatic feeds on X,Y axes,motorized lifting and down on Z axis.
•Exchange with Taiwan milling head (5HP)
•Full gear head ,spindle taperISO50
•Extended length and strong saddle,more rigid
•Milling head swivels ±45°.
•Rectangular table guide ways with high stability.
•Hardened and ground table surface.
•Automatic feeds on X,Y axes,motorized lifting and down on Z axis.
| Item | X6336 |
| Spindle taper | ISO40(V) ISO50(H) |
| Diameter of quill | 120mm |
| Distance from spindle to table | 135-535mm |
| Distance between spindle axis and boom | 230mm |
| Distance from spindle to column | 200-700mm |
| Spindle speeds | 80-4660r.p.m (V) 60-1800r.p.m(H) |
| Spindle travel | 145mm |
| Feeding of quill | (3step)0.04 0.08 0.15 |
| Max.drilling capacity of auto-feeding | Ø10mm |
| Head movement | ±45° |
| Table size | 1250×360mm |
| Table travel | 1000/320/400mm |
| Feeding range of longitudinal.cross travel | 22-555mm/min(8 steps) |
| X,Y-axis rapid feed speed | 1080mm/min |
| Z-axis Rapid feed speed | 590mm/min |
| Z-axis motor power | 1.1kw |
| Max.weight of worktable | 400kg |
| T-slot Number/Width/Distance | 3/18/80mm |
| Milling head moving(Vertical) | 7.5HP(V) 4kw(H) |
| Coolant pump | 90W(25L) |
| X,Y axis driving motor | 750W |
| Overall dimension | 2220×1790×2360mm |
| Packing size | 1800×1900×2250mm/2300×1900×2250mm |
| N.W/G.W. | 2450/2650kg(4900/5200kg) |
