Tqc200 out Angle Back Milling Machine Cutting Blades
TQC200 Angle back milling machineApplicable Industry: The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc. Product Feature:1.By installing special cutter of ......
Send Inquiry
Product Description

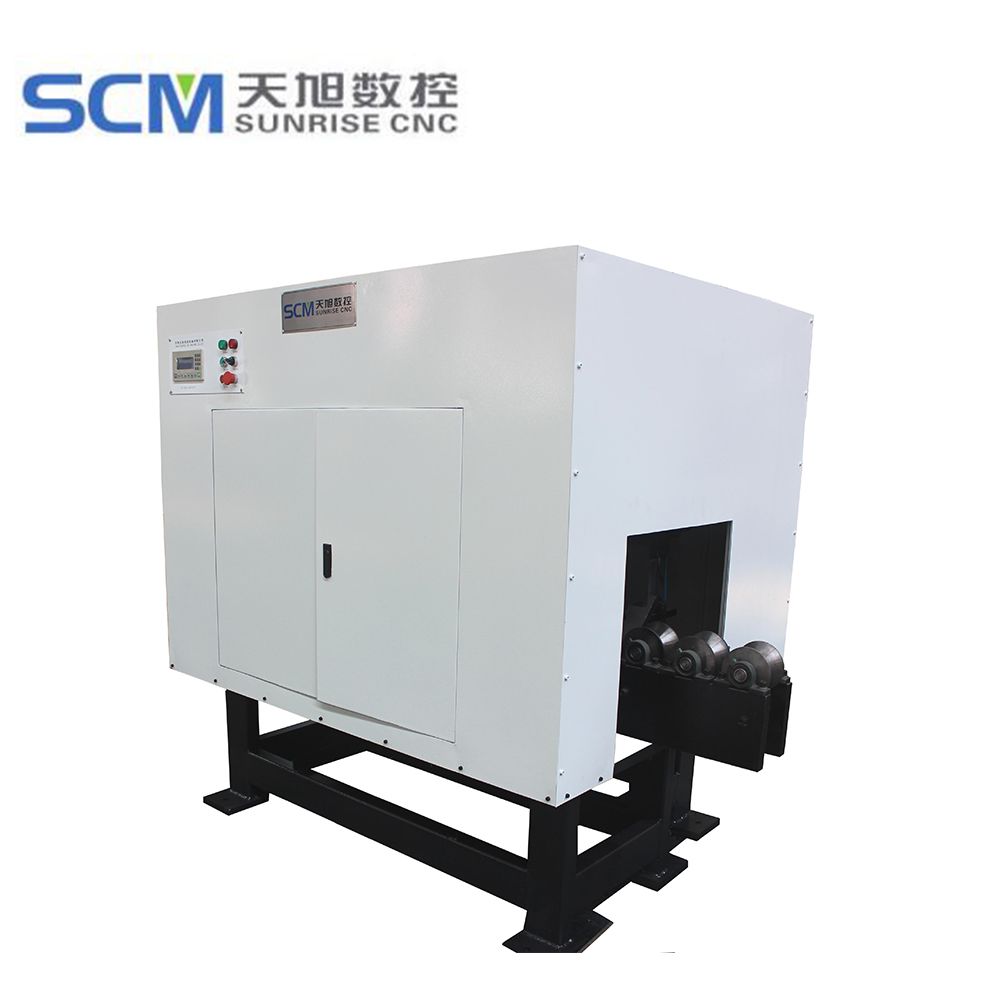

TQC200 Angle back milling machine
Applicable Industry:
The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
1.By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process.
2.According to request it can do a single-stage and continuous cutting.
3.Operation of this machine is simple, reduced operational requirements of workers.
4.Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together.
5.Compared with the traditional planer, this machine overcome the problems that limited length, interposed complicated , the processing length unlimited, without the workpiece clamping device so that the processing is more convenient, reducing the labor intensity, greatly improving production efficiency.
6.Simple operation, flexible adjustment and stable operation.
7.Multi -purpose machine, can complete continuous feed and cutting length.
8.With the air pressure protection device to prevent the safety accidents caused by low pressure.
9.With touch-screen operator interface.
10.Adjustment mechanism adopt the servo or stepper motor, high precision, low failure rate, easy maintenance.
11.Spindle box adopt oil-immersed structure, longer service life, more stable performance.
SPECIFICATIONS:
Applicable Industry:
The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
1.By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process.
2.According to request it can do a single-stage and continuous cutting.
3.Operation of this machine is simple, reduced operational requirements of workers.
4.Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together.
5.Compared with the traditional planer, this machine overcome the problems that limited length, interposed complicated , the processing length unlimited, without the workpiece clamping device so that the processing is more convenient, reducing the labor intensity, greatly improving production efficiency.
6.Simple operation, flexible adjustment and stable operation.
7.Multi -purpose machine, can complete continuous feed and cutting length.
8.With the air pressure protection device to prevent the safety accidents caused by low pressure.
9.With touch-screen operator interface.
10.Adjustment mechanism adopt the servo or stepper motor, high precision, low failure rate, easy maintenance.
11.Spindle box adopt oil-immersed structure, longer service life, more stable performance.
SPECIFICATIONS:
| Model | TQC200 | TQC250 |
| Total power | 10KW | 12KW |
| Single-spindle power | 4KW | 5.5KW |
| Power supply | 380V,50Hz | 380V,50Hz |
| Air supply | 0.6MPa~0.7MPa | 0.6MPa~0.8MPa |
| Cutting Speed | 150~400rpm | 0~400rpm |
| Diameter of cutting plate | 100mm | 200mm |
| Feeding speed | 100~450mm | 0~450mm/min |
| Rotation of spindle | 450rpm | 360rpm |
| Quantity axis | 2 | 2 |
| Quantity feeding motor | 2 | 2 |
| Adjustment motor of cutting amount | 1(Servo or stepper motor) | 1(Servo or stepper motor) |
| Quantity pressure cylinder | 4 | 4 |
| Angle processing size | L50~L200 | L63~L250 |
| Length of angle | 280mm~+∞ (Processing length unlimited) | 330mm~+∞ (Processing length unlimited) |
| Operation mode(Data input) | Touch screen (with compensation function) | |
