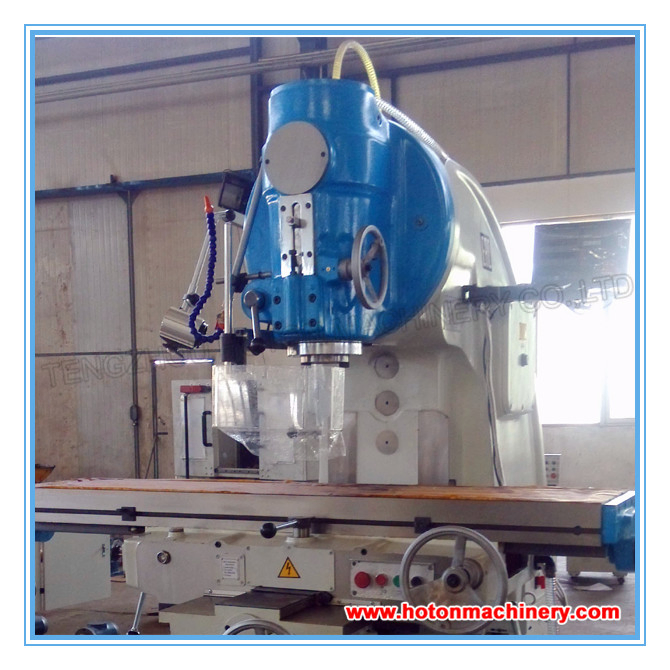

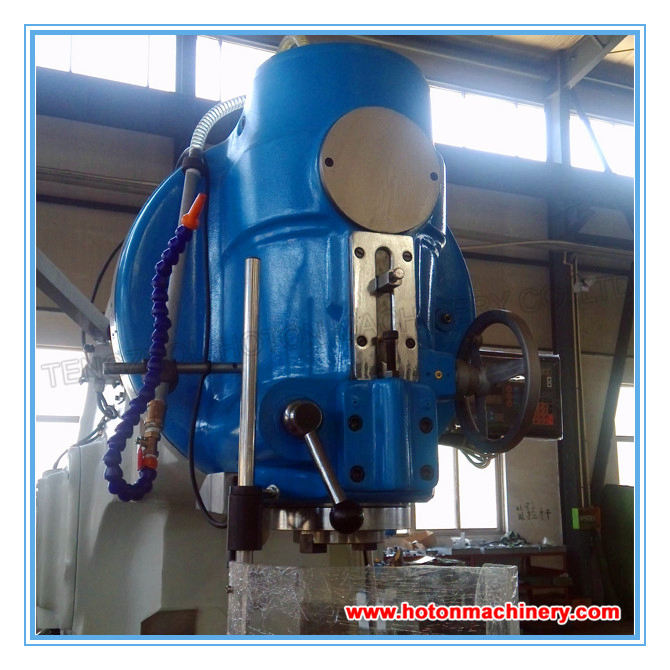

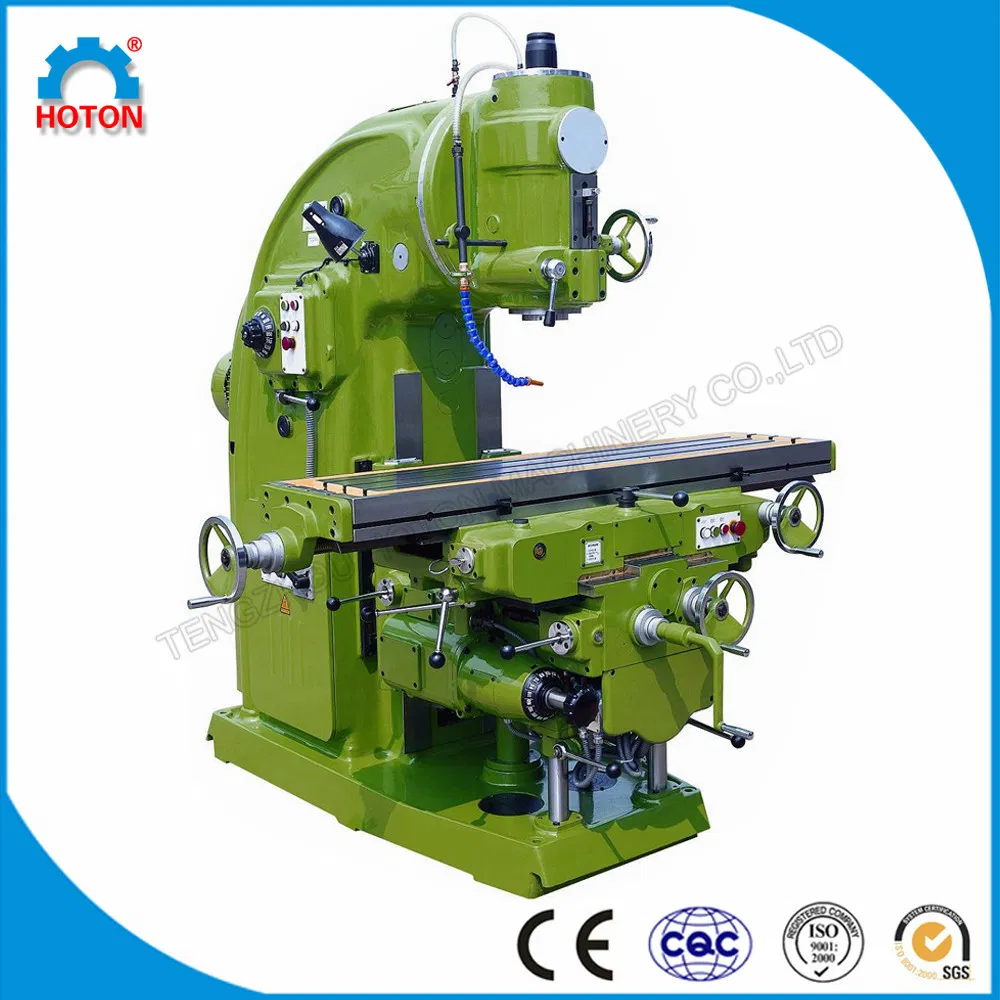

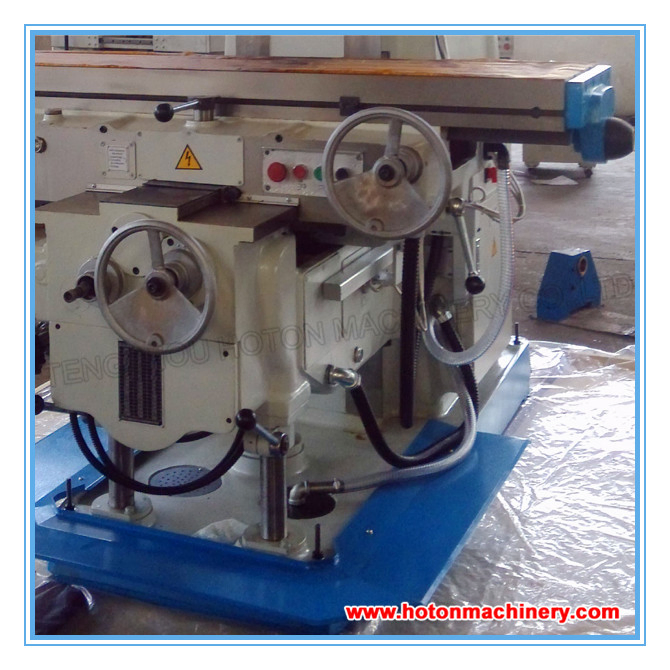

Universal Vertical Knee Type Milling Machine (X5040)
VERTICAL MILLING MACHINE FEATURES:The machine is suitable for machinery, light industry, instrument, motor, electrical appliance andmoulds, and widely used in milling plane, inclined plane and slot on miscellaneous work piecesof various metals by means of cylindrical or angle milling cutter in eithe......
Send Inquiry
Product Description
VERTICAL MILLING MACHINE FEATURES:
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and
moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces
of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling.
It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid
adjustment in longitudinal, cross, vertical traverse.
Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove,
keyway and also can drill and bore with special equipment. The machine introduces ball screw drive
and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
STANDARD ACCESSORIES:
1. ISO50 Milling chuck
2. ISO50 Cutter arbor
3. Inner hexagon spanner
4. Double head wrench
5. Single head spanner
6. Oil gun
7. Draw bar
SPECIFICATIONS:
| MODEL | UNIT | X5040 |
| Table size | mm | 400X1700 |
| T-slots(NO./Width/Pitch) | 3/18/90 | |
| Longitudinal travel(manual/auto) | mm | 900/880 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 385/365 |
| Rapid feed speed | mm/min | 2300/1540/770 |
| Spindle pore | mm | 29 |
| Spindle taper | 7:24 ISO50 | |
| Spindle speed range | r/min | 30~1500 |
| Spindle speed step | steps | 18 |
| Spindle travel | mm | 85 |
| Max.swivel angle of vertical milling head | ±45° | |
| Distance between spindle nose and table surface | mm | 30-500 |
| Distance between spindle axis and colomn guideway | mm | 450 |
| Feed motor power | kw | 3 |
| Main motor Power | kw | 11 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 |
| Net weight | kg | 4250/4350 |
