High Quality ZAY7032FG/1 Drilling And Milling Machine price

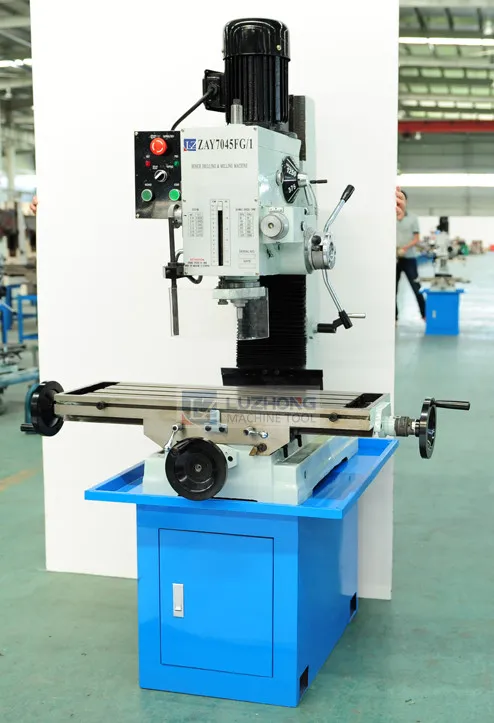

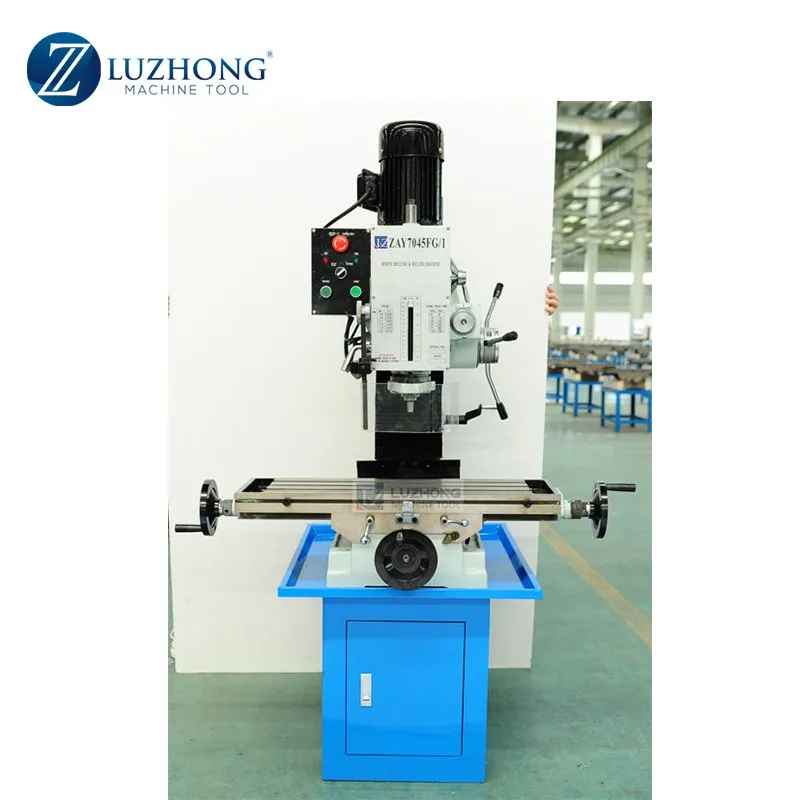

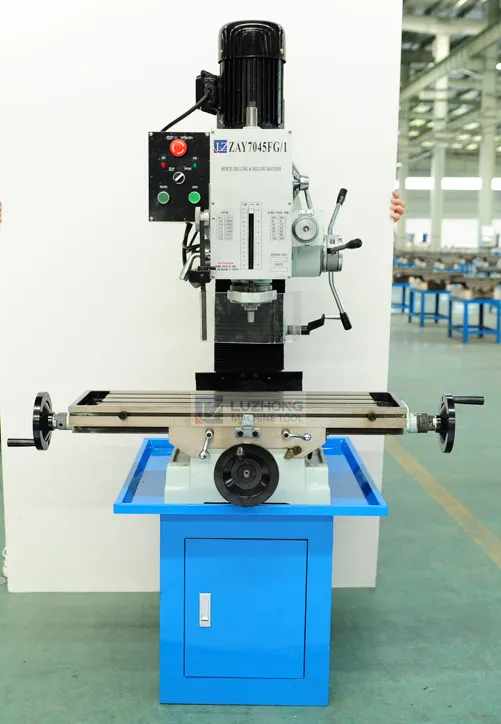

Product pictures:
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:
| ITEM | ZAY7032FG/1 |
| Drilling capacity | 32mm |
| Max.boring diameter | 50mm |
| Max Face mill capacity | 63mm |
| Max End mill capacity | 20mm |
| Max distance from spindle nose to table | 450mm |
| Min distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | M.T.3 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 |
| Auto-feeding amount of spindle | 0.06-0.30mm/r |
| Swivel angle of headstock (perpendicular) | ±90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 0.75KW(1HP) |
| Net/Gross weight | 320kg/370kg |
| Packing size | 770×880×1160mm |
