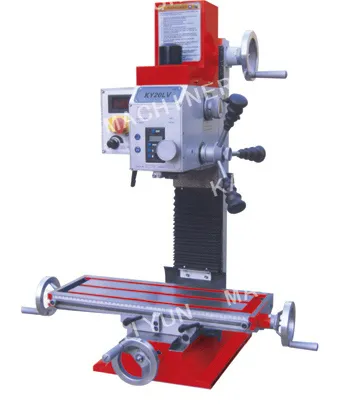

Milling and Drilling Machine Ky20V/Ky20LV Universal Drilling Milling Machine

Product Description

Features
1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.

Specification
Model No	KY20V	KY20LV
Drilling capacity	20mm	20mm
Face milling capacity	63mm	63mm
End milling capacity	20mm	20mm
Spindle taper	MT2	MT2
Sleeve travel	50mm	50mm
Low speed stage	50-1125rpm	50-1125rpm
High speed stage	100-2250rpm	100-2250rpm
Head rotation	±90°	±90°
Table size	500x180mm	700x180mm
X-axis travel	280mm	480mm
Y-axis travel	175mm	175mm
Z-axis travel	380mm	380mm
T-slot	12mm	12mm
Load of table	55kg	55kg
Motor	600W	600W
Packing size	670x550x860mm	870x550x860mm
Net weight	103kg	115kg
Standard Accessories
Speed display	1 set
Depth ruler	1 set
Drill chuck 3-16mm	1 set
Arbor MT2/B16, M10	1 set
Drawbar MT2/M10	1 set
Optional Accessories
Stand & chip tray
Working lamp
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
2-way angle vise-50mm
End mill 7pcs (4-16mm)
*58pcs of clamping kits/M1011.7mm**
X-axis Power feed
