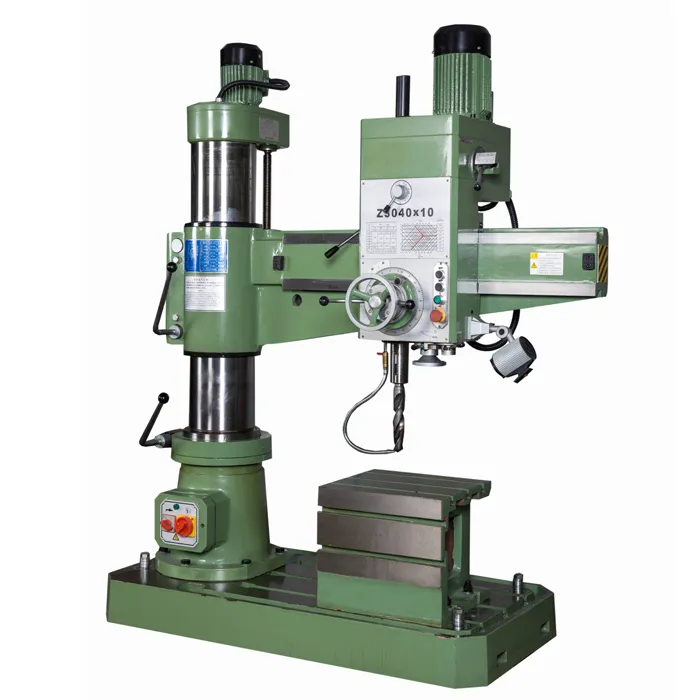

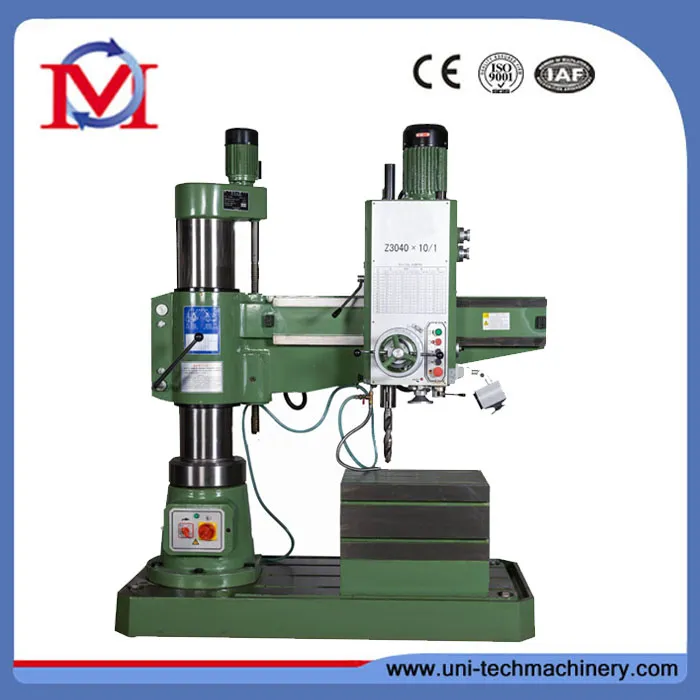

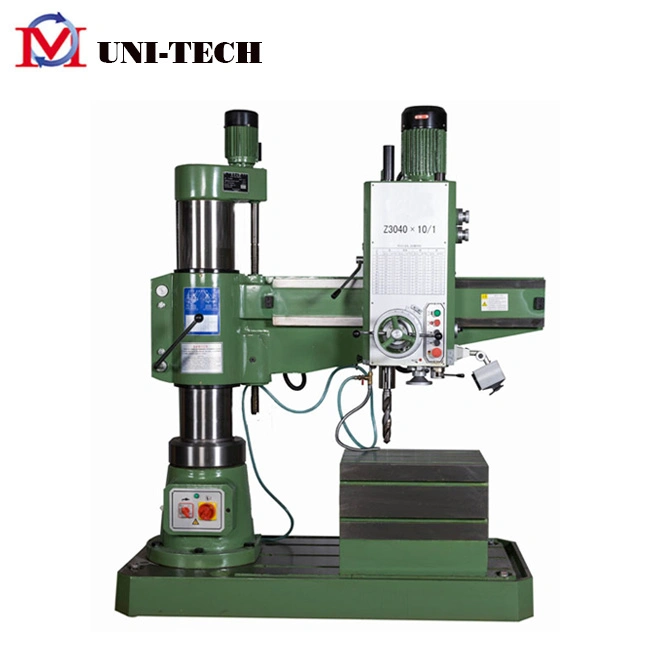

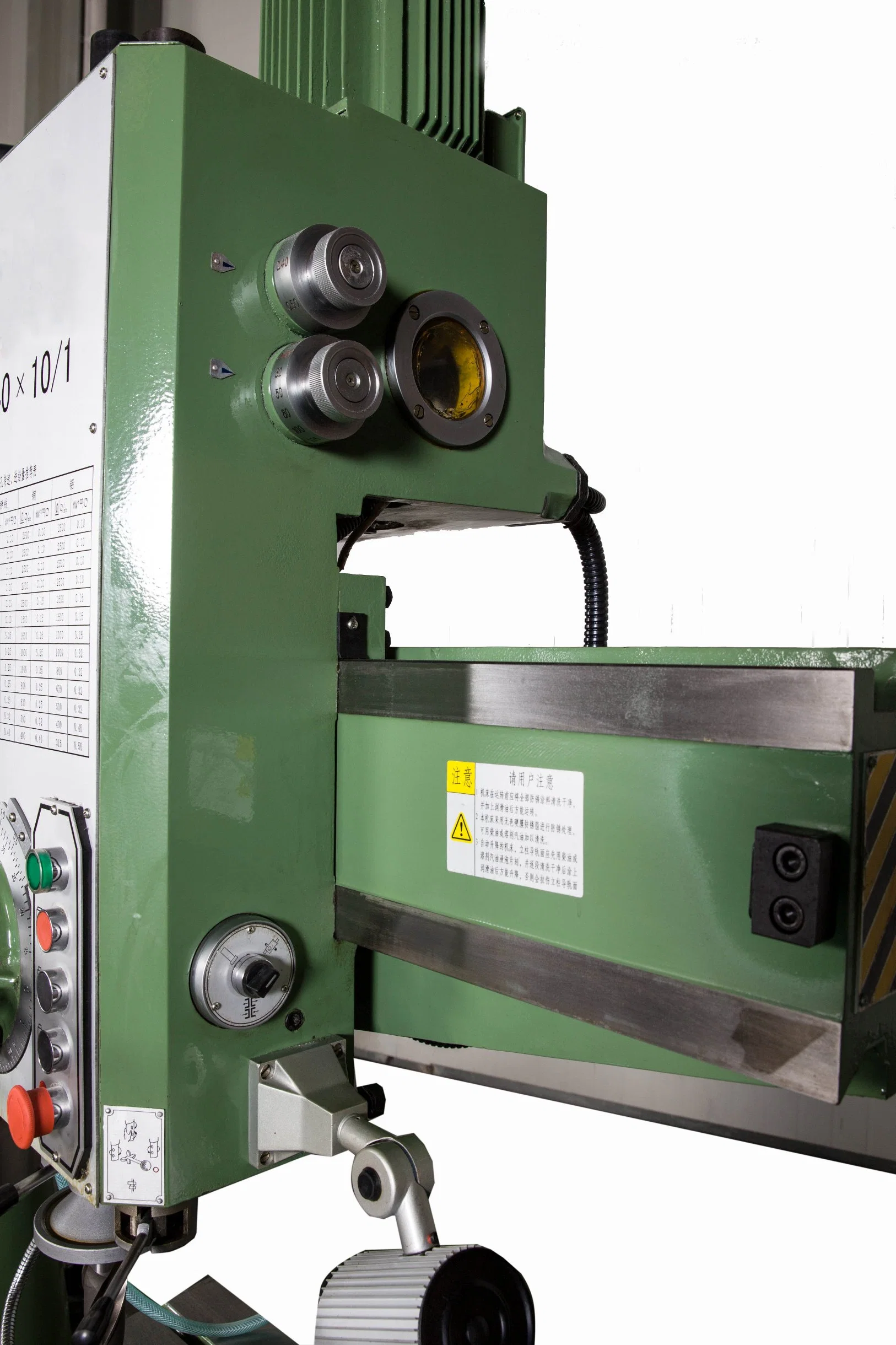

(Z3040X8/1) Hydraulic Radial Drilling Machine
China factory supplier vertical radial drilling machine (Z3040X8/1)1.Main features:Inner-outer column.Mechnical clamping for the column and Hydraulic Speed Changing.Spindle with auto-feeding.coolant, work light, available.Spindle Box machined by machining center.2.Specification of our radial drilli......
Send Inquiry
Product Description
China factory supplier vertical radial drilling machine (Z3040X8/1)
1.Main features:
2.Specification of our radial drilling machine Z3040x8/1:
3.Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
4.Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
5.If you are intersted in radial arm drilling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
1.Main features:

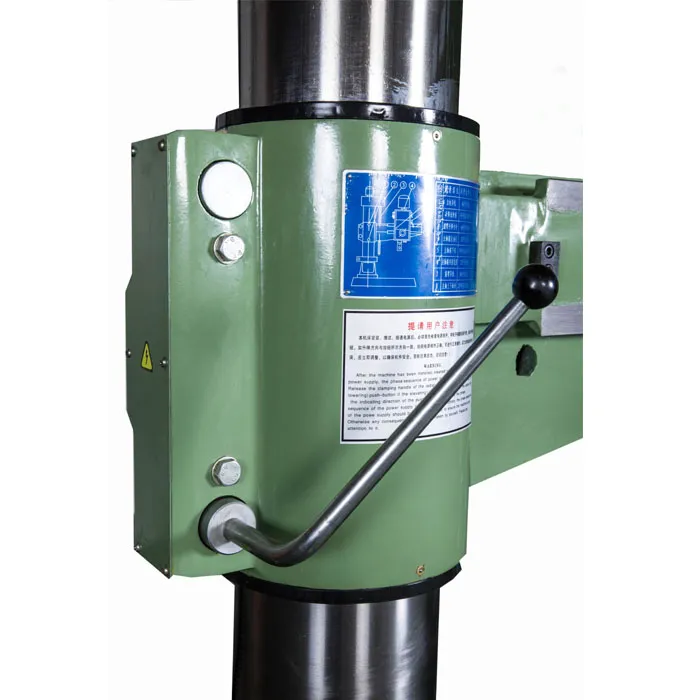

Inner-outer column.

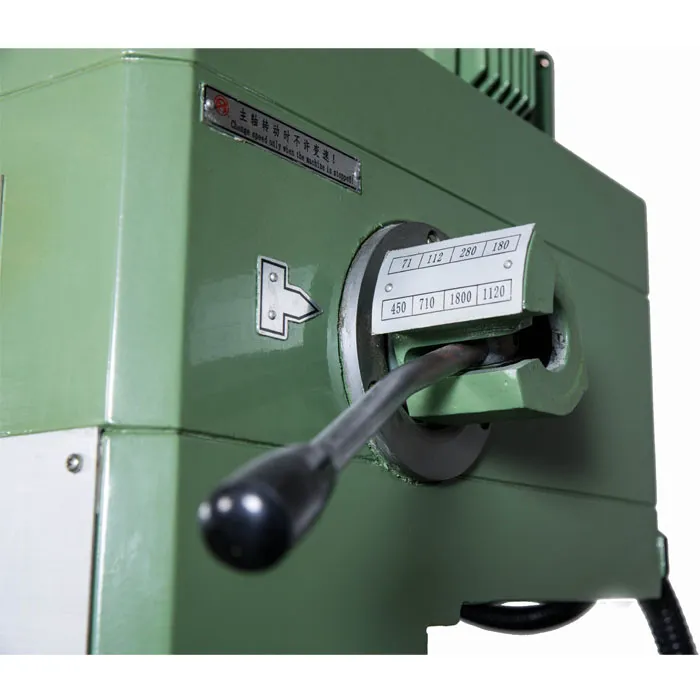

Mechnical clamping for the column and Hydraulic Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
Mechnical clamping for the column and Hydraulic Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
2.Specification of our radial drilling machine Z3040x8/1:
| Model | Z3032×8/1,Z3040×8/1 | Z3040×10/1 |
| Max.Drilling capacity (mm) | 32 | 40 |
| Distance spindle axis to column generating line (mm) | 320-820 | 320-1020 |
| Diameter of column (mm) | 200 | 200 |
| Spindle taper | MT4 | MT4 |
| Spindle travel (mm) | 240 | 240 |
| Spindle speeds range (r/min) | 75-1220 | 75-1220 |
| Spindle speeds series | 6 | 6 |
| Range of Spindle feeds (r/min) | 0.1-0.25 | 0.1-0.25 |
| Mpindle Spindle feeds | 3 | 3 |
| Max.Distance spindle nose to working surface of base (mm) | 320-900 | 320-900 |
| Dimension of worktable (mm) | 400×400×350 | 400×400×350 |
| Dimension of base (mm) | 1370×700×160 | 1370×700×160 |
| Overall Size (mm) | 1407×720×1885 | 1407×720×1885 |
| Power of Main motor (kW) | 1.5 | 1.5 |
| G.W/N.W (kg) | 1425/1200 | 1425/1230 |
| Packing dimension (cm) | 155×77×210 | 187×77×210 |
3.Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
4.Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
5.If you are intersted in radial arm drilling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
