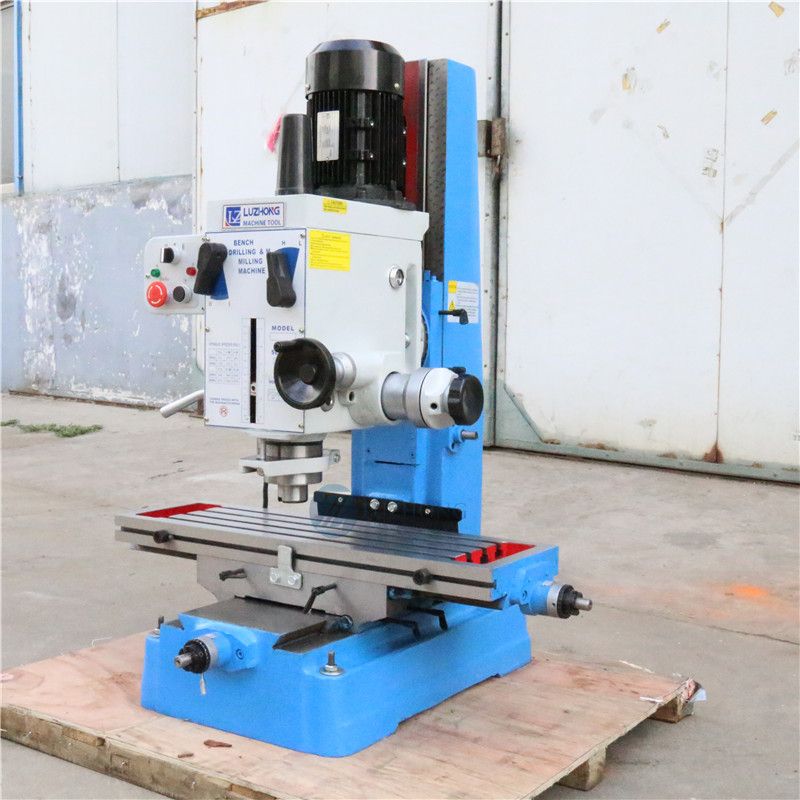

Cheap Portable Small drill mill ZX7016/7025/7032/ 7045 Drilling And Milling Machine
Cheap Portable Small ZX7016/7025/7032/7045 Drilling And Milling MachineProduct DescriptionDetailed PhotosProduct ParametersThe main performance characteristics: Reinforced type gear, transmission torque largeB1 type optional2-speed motor, spindle speed range widely.Application:Widely used in single ......
Send Inquiry
Product Description
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
| Specifications | ZX7016 | ZX7025 | ZX7032 | ZX7045 |
| Max. Drilling capacity (mm) | 16 | 25 | 31.5 | 45 |
| Max. face mill capacity (mm) | 40 | 63 | 80 | 80 |
| Diameter of vertical milling (mm) | 10 | 13 | 22 | 28 |
| Diameter of column (mm) | / | / | / | / |
| Spindle travel (mm) | 80 | 110 | 130 | 120 |
| Distance spindle axis to column generating line(mm) | 182 | 240 | 202 | 260 |
| Max. Distance spindle nose to table (mm) | 360 | 510 | 460 | 475 |
| Spindle taper | MT2 | MT3 | MT3 | MT4 |
| Spindle speeds range (r/min) | 320~3300 | 290~2150 | 100~2150 | 95~1600 |
| Spindle speeds series | 12 | 5 | 12 | 6 |
| Spindle feeds (mm/r) | / | / | / | / |
| Dimension of worktable surface (mm) | 420×152 | 555×195 | Standard : 730x210 select: 820x240 | Standard : 730x210 select: 820x240 |
| Table travel (mm) | 230×120 | 240×140 | Standard :450×170 select: 540x170 | Standard :450×170 select: 540x170 |
| Dimension of base (mm) | / | / | / | / |
| Overall height (mm) | 900 | 1130 | 1100 | 1050 |
| Main motor (W) | 550 | 750 (6P) | Single-phase:1100 Three-phase:1500 | Single-phase:1100 Three-phase:1500 |
| Coolant motor (W) | / | / | / | / |
| G.W/N.W(Kg) | 100/75 | 190/160 | 285/250 | 318/278 |
| Packing dimension (cm) | 65×58×77 | 87×67×102 | 97×77×124 | 97×77×116 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
