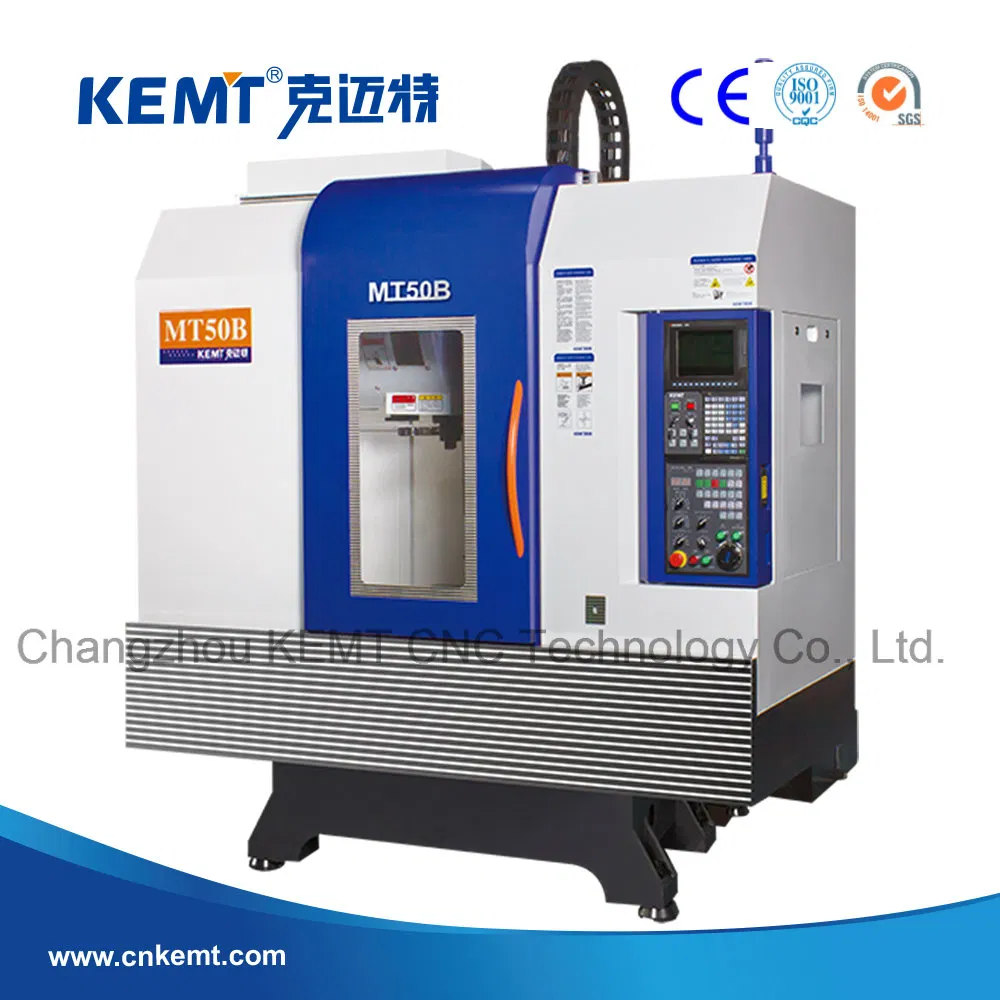

CNC Mitsubishi-System Drilling and Machining Lathe (MT50B)
1. SpecificationsModelMT50BItem MitsubishiWorktableTable size 650(23.57)*400(14.93) mm(inch)Max. bearing capacity 300(11.79) kg(lbs)TravelX-axis Travel ......
Send Inquiry
Product Description
1. Specifications
2. Standard accessories
(1) Work Light
(2) Signal Light
(3) Foundation Plates and Bolts
(4) Mechanical Tool Changer
(5) 24-Tool Changer
(6) Cooling System
(7) Automatic Lubrication Device
(8) Full-covered Metal Sheet
(9) Toolkit
(10) Special Technical Data
3. Optional accessories
(1) disc type tailstock
(2) hydraulic unit
(3) NC rotary worktable
(4) NC 5th-axis rotary worktable
(5) air conditioner for electrical cabinet
(6) hand-operated MPG
(7) smoke precipitator
(8) safety door lock
(9) bed shower
(10) manual tailstock
4. Part of Applications
(1) auto industry
(2) medical industry
(3) military industry
(4) IT industry
(5) motorcycle industry
(6) aerospace industry
| Model | MT50B | |
| Item | Mitsubishi | |
| Worktable | Table size | 650(23.57)*400(14.93) mm(inch) |
| Max. bearing capacity | 300(11.79) kg(lbs) | |
| Travel | X-axis Travel | 500(20.43) mm(inch) |
| Y-axis Travel | 400(15.71) mm(inch) | |
| Z-axis Travel | 380(14.93) mm(inch) | |
| Distance from spindle to table surface | 200(7.86)-580(22.79) mm(inch) | |
| Spindle | Max. spindle rotation speed | 12000 rpm |
| Tapping speed | 4000 rpm | |
| Taper | 7/24 | |
| Feeding rate | Rapid moving speed of X/Y/Z axes | 48/48/48 m/min |
| Cutting feeding rate | 1-12,000(472.44) mm/min(inch/min) | |
| ATC unit | Toolholder specification | BT40 |
| Pull studbolt type | BT40 | |
| Tool changer capacity | 24 pcs. | |
| Max. tool length | 300(11.81) mm(inch) | |
| Max. tool diameter | 75(2.95) mm(inch)/150(5.91)mm(inch) | |
| Max. tool weight | 8(17.63) kg(lbs) | |
| Tool change time | T-T time | 0.9 Sec. |
| C-C time | 1.5 Sec. | |

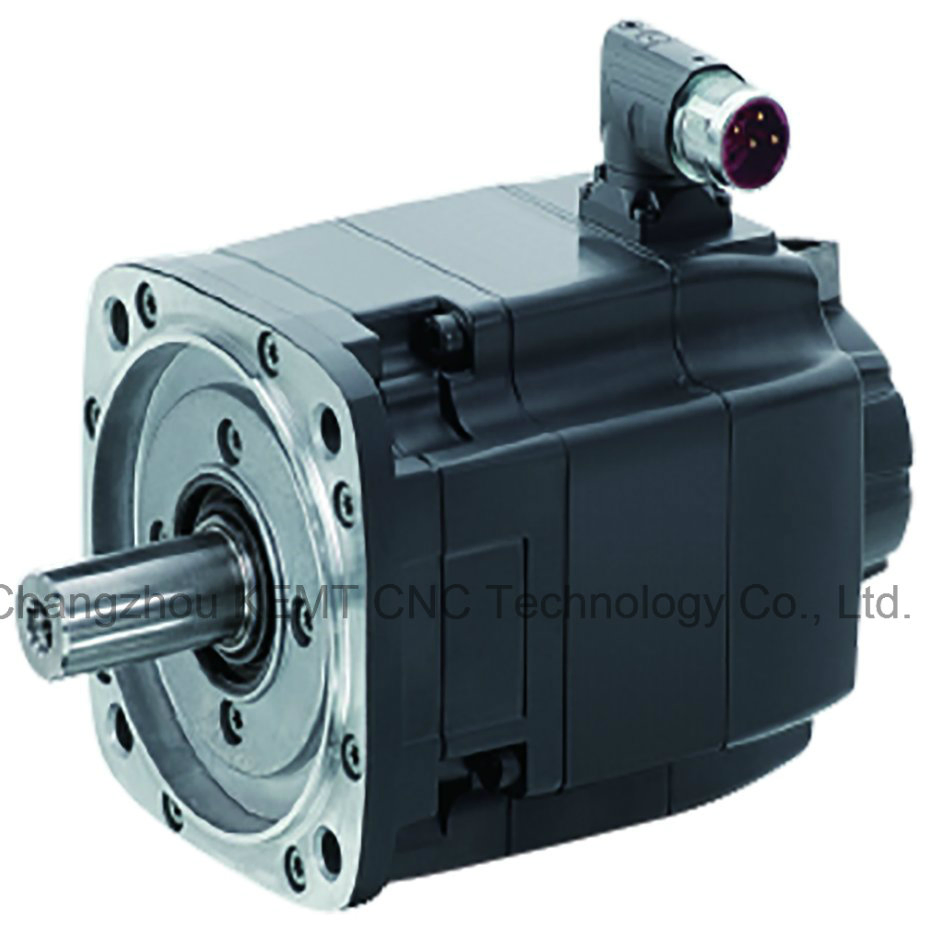

| Motors | Spindle motor power | 7.5 kw |
| Power | Power requirement | AC220+/-10 |
| Power capacity | 15 kVA | |
| Machine dimensions | Machine height | 2830(111.41) mm(inch) |
| Floor space [with control unit door opened] | 2200(86.61)*2430(95.61) mm(inch) | |
| Machine weight(including control unit and splash guard) | 4000(8818.49) kg(lbs) | |
| Accuracy | Positioning accuracy | 0.005/300(0.0002 / 11.8) mm(inch) |
| Repeat positioning accuracy | +/-0.003(+/-0.00012) mm(inch) | |
2. Standard accessories
(1) Work Light
(2) Signal Light
(3) Foundation Plates and Bolts
(4) Mechanical Tool Changer
(5) 24-Tool Changer
(6) Cooling System
(7) Automatic Lubrication Device
(8) Full-covered Metal Sheet
(9) Toolkit
(10) Special Technical Data
3. Optional accessories
(1) disc type tailstock
(2) hydraulic unit
(3) NC rotary worktable
(4) NC 5th-axis rotary worktable
(5) air conditioner for electrical cabinet
(6) hand-operated MPG
(7) smoke precipitator
(8) safety door lock
(9) bed shower
(10) manual tailstock
4. Part of Applications
(1) auto industry
(2) medical industry
(3) military industry
(4) IT industry
(5) motorcycle industry
(6) aerospace industry
