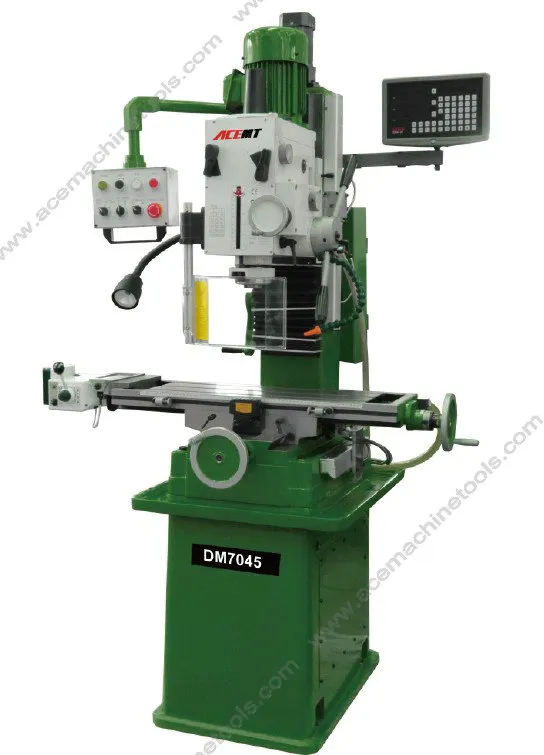

Drilling and Milling Machine (DM7045)

Product Description

Drilling & Milling Machine DM7045
Main parameters:
Max.drilling capacity(iron/steel): 31.5/45mm
Max.mill capacity(face/end): 80/32mm
Spindle taper: MT3/MT4/R8/ISO30
Worktable size:800×240mm

Item	DM7045	DM45
Max.drilling capacity(iron/steel)	31.5/45mm	31.5/40mm
Max.mill capacity(face/end)	80/32mm	80/32mm
Spindle taper	MT3/MT4/R8/ISO30	MT3/MT4/R8
Worktable size	800×240mm	800x240mm
Worktable travelX/Y	570/230mm	565/230mm
Spindle travel	130mm	130mm
Spindle nose to worktable	470mm	470mm
Spindle speeds range(2 steps)	12steps:75-3200r/min	50Hz 75~1600rmp 60Hz 90~1970rmp
motor	0.85/1.1kw	1.1kw
N.W/G.W	300/350KG	300/350KG
Packing size(L×W×H)	1140×960×2240mm	850x760x1150mm
20'Container	12 sets	36sets

1120*280/1120*260mm
Table travel: 600*230/600*270MM
Max. Drilling dia.: 50mm
Max. Vertical milling dia: 25mm
Spindle travel: 120mm

Item	DM7045	DM45
Max.drilling capacity(iron/steel)	31.5/45mm	31.5/40mm
Max.mill capacity(face/end)	80/32mm	80/32mm
Spindle taper	MT3/MT4/R8/ISO30	MT3/MT4/R8
Worktable size	800×240mm	800x240mm
Worktable travelX/Y	570/230mm	565/230mm
Spindle travel	130mm	130mm
Spindle nose to worktable	470mm	470mm
Spindle speeds range(2 steps)	12steps:75-3200r/min	50Hz 75~1600rmp 60Hz 90~1970rmp
motor	0.85/1.1kw	1.1kw
N.W/G.W	300/350KG	300/350KG
Packing size(L×W×H)	1140×960×2240mm	850x760x1150mm
20'Container	12 sets	36sets
