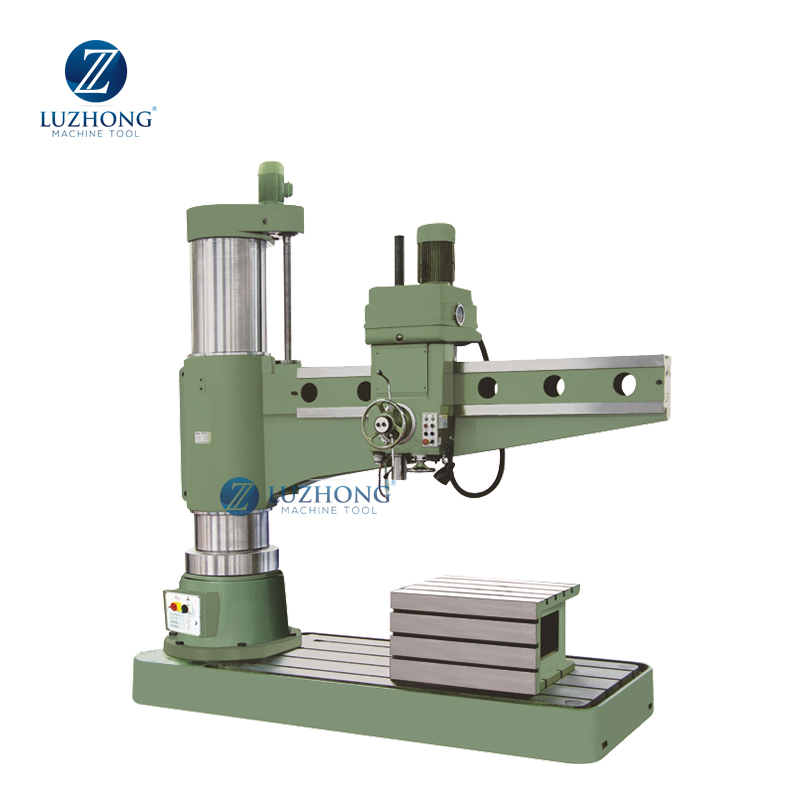

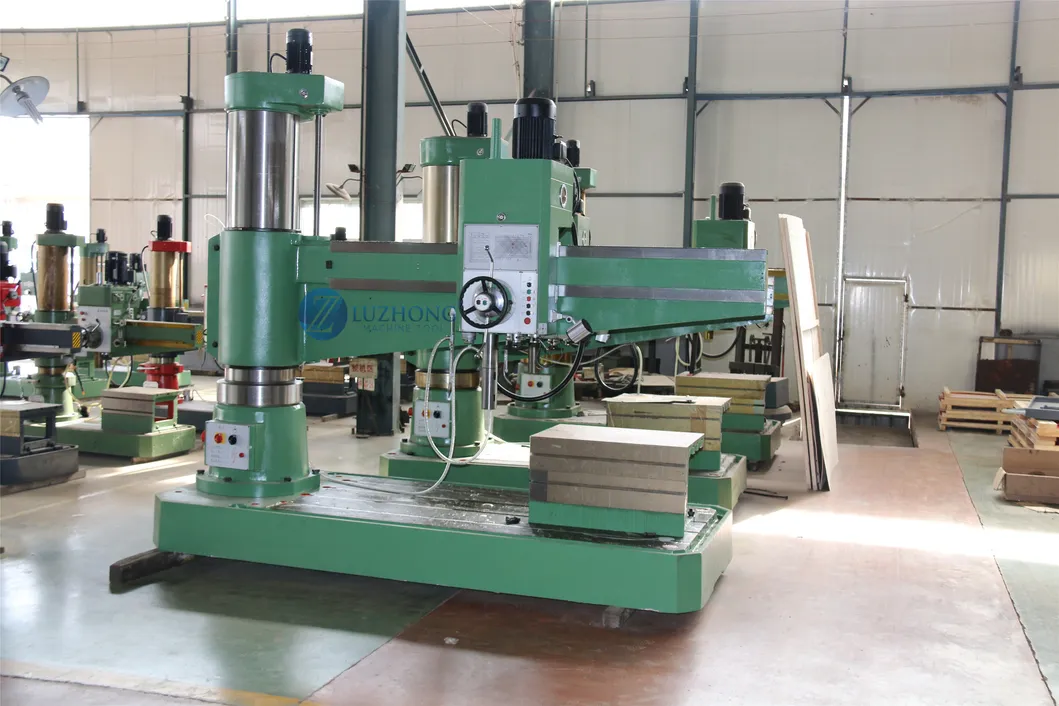

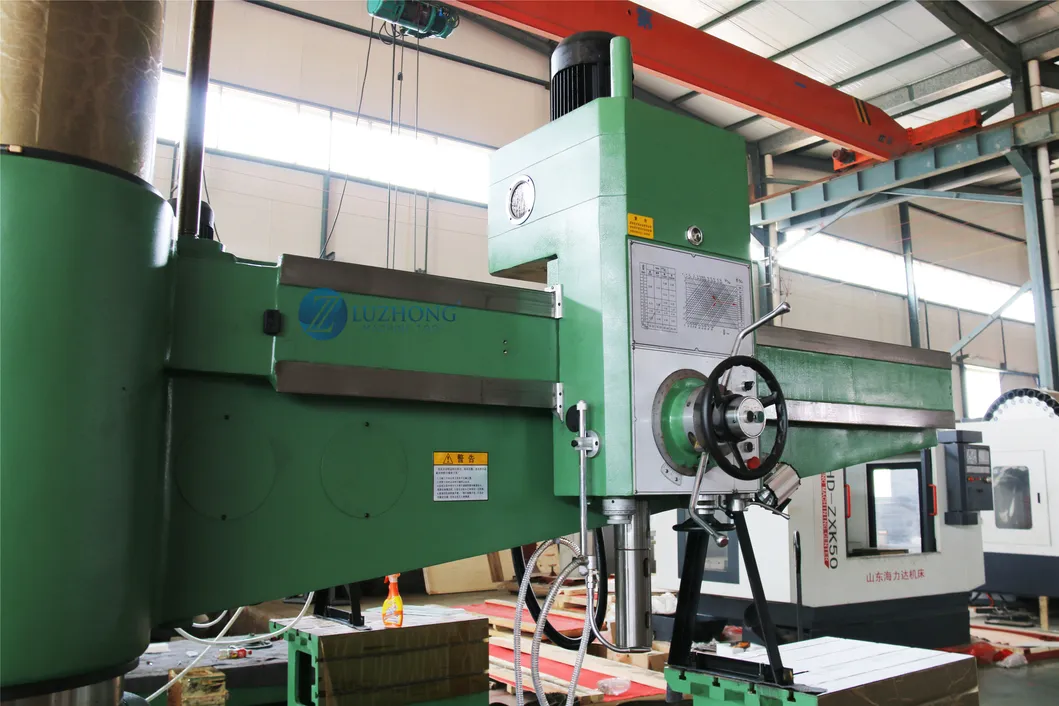

drilling machinery Z30100x31 water borehole drilling machine
Drilling machinery Z30100x31 water borehole drillProduct DescriptionDetailed PhotosProduct ParametersProduct description:Hydraulic clampingHydraulic tansmissionHydraulic pre-selectionElectricity machinery double insuranceProduct main technical specifications: specificationsZ30100x31Z30125x40Max. dr......
Send Inquiry
Product Description
- Hydraulic clamping
- Hydraulic tansmission
- Hydraulic pre-selection
- Electricity machinery double insurance
Product main technical specifications:
| specifications | Z30100x31 | Z30125x40 |
| Max. drilling diameter(mm) | 100 | 125 |
| Distance between spindle axis and column surface(mm) | 570-3150 | 600-4000 |
| Distance form spindle nose to table surface(mm) | 750-2500 | 750-2500 |
| Spindle travel(mm) | 500 | 560 |
| Spindle taper | NO.6 | Metric 80 |
| Spindle speeds range(r/min) | 8-1000 | 6.3-800 |
| Spindle speed step | 22 | 22 |
| Spindle feeding range(r/min) | 0.06-3.2 | 0.06-3.2 |
| Spindle feeding step | 16 | 16 |
| Table size(mm) | 1250X800X630 | 1250X800X630 |
| Headstock level migration distance(mm) | 2580 | 2400 |
| Max.torque spindle(mm) | 2450 | 3146 |
| Spindle motor power(kw) | 15 | 18.5 |
| Racking shaft heave height(mm) | 1250 | 1250 |
| N.W./G.W. | 20000kg | 28500 |
| Overall dimensions(L*W*H) | 4660×1630×4525mm | 4960×2000×4780mm |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
