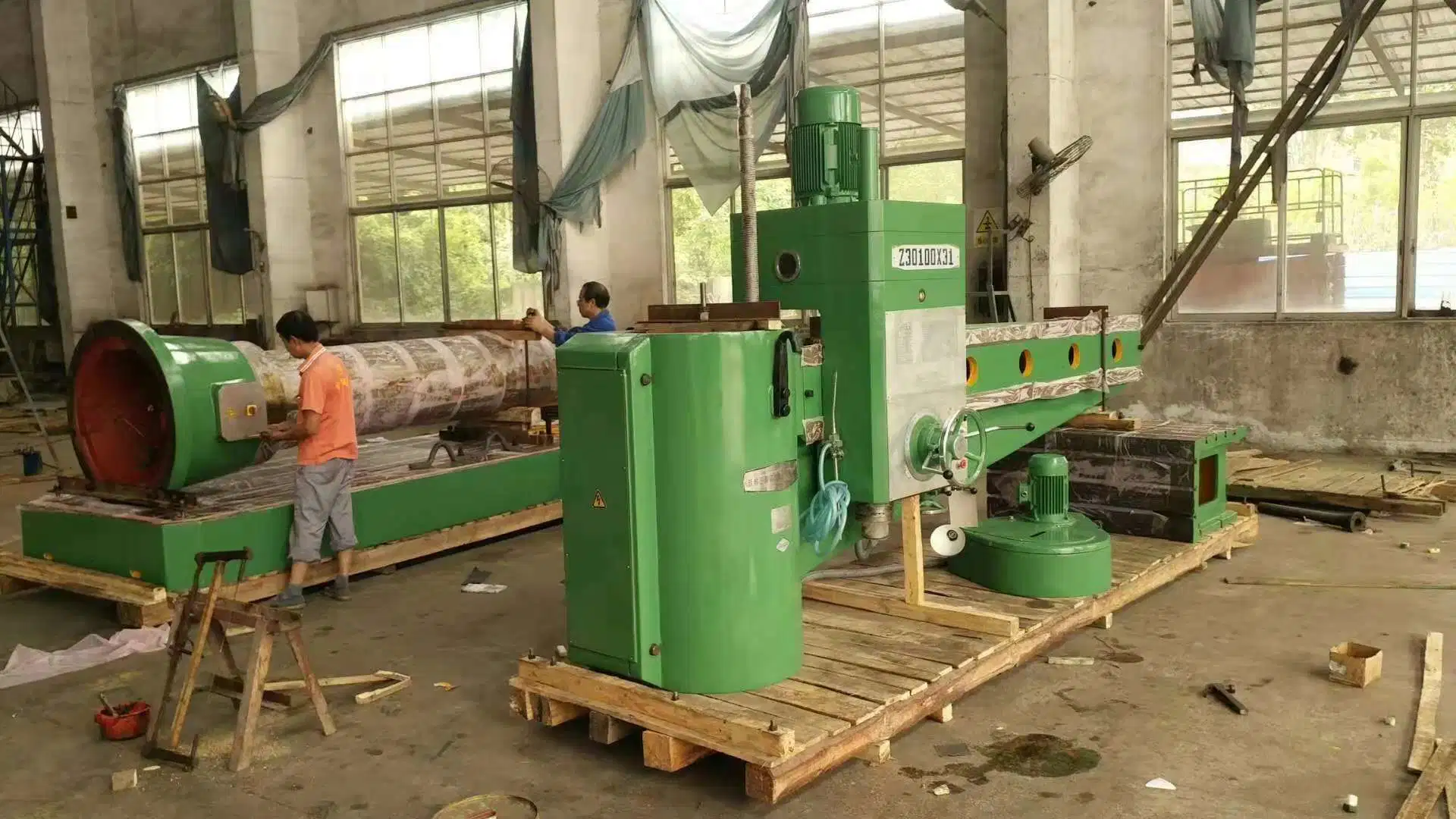

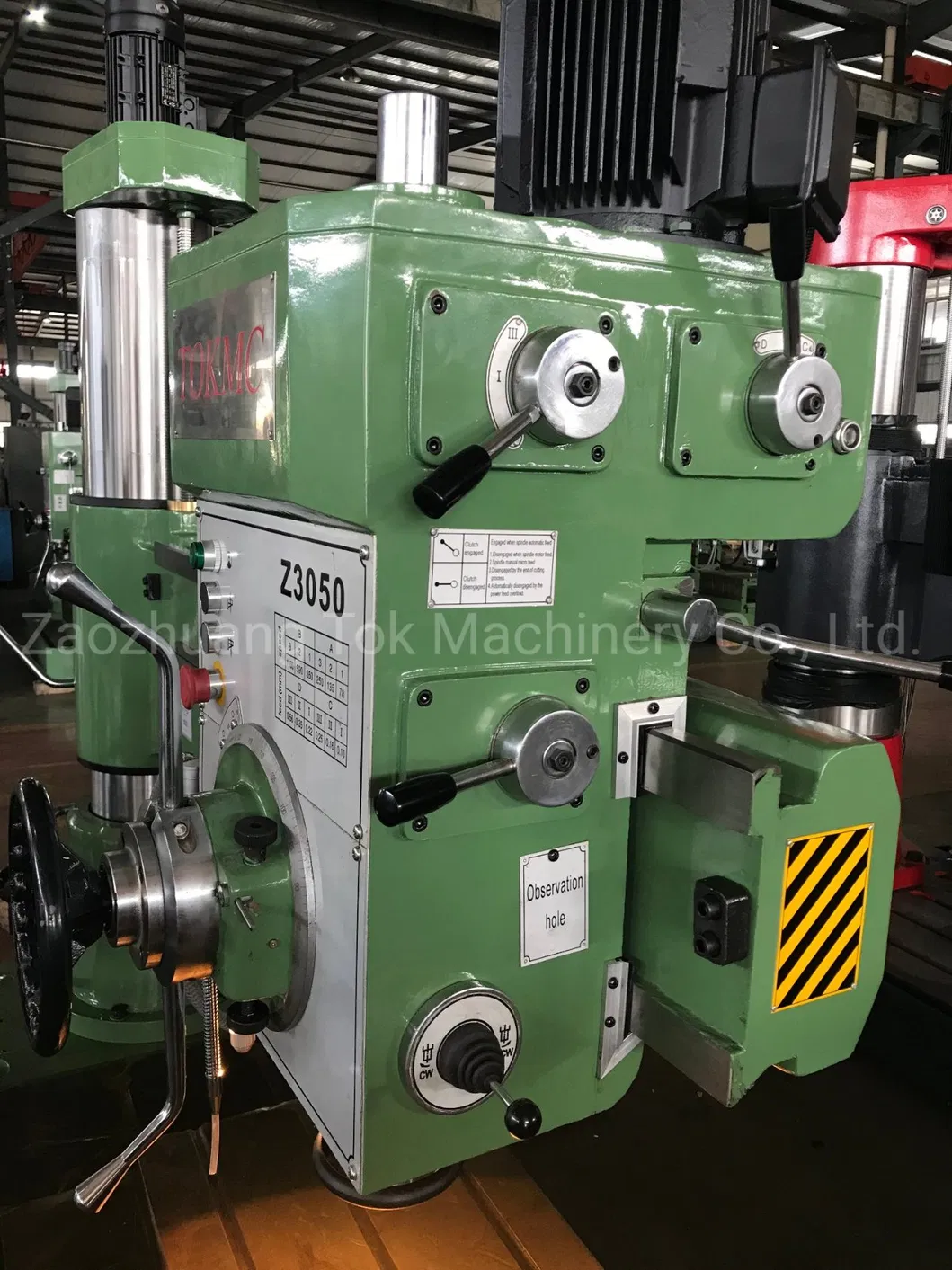

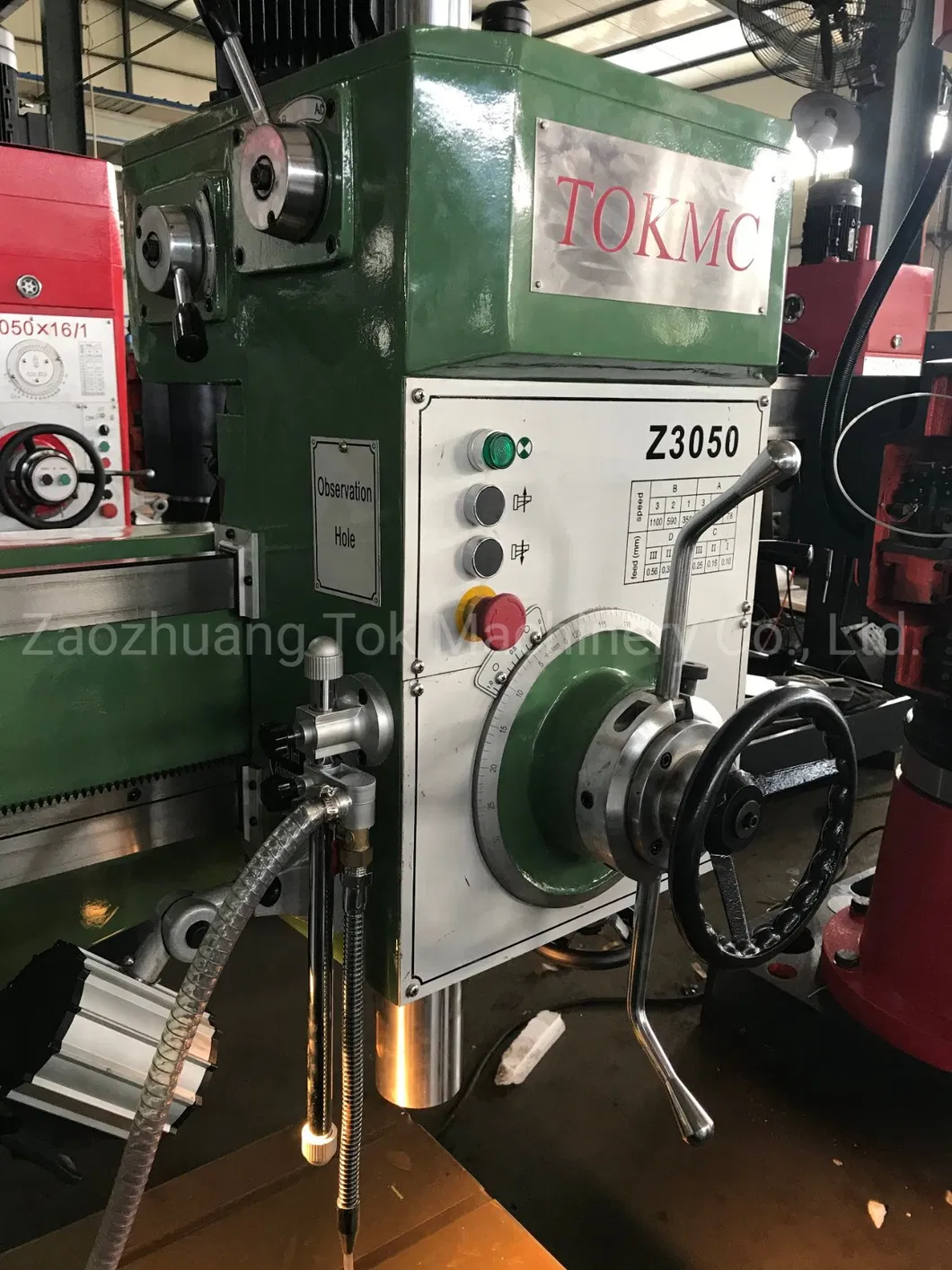

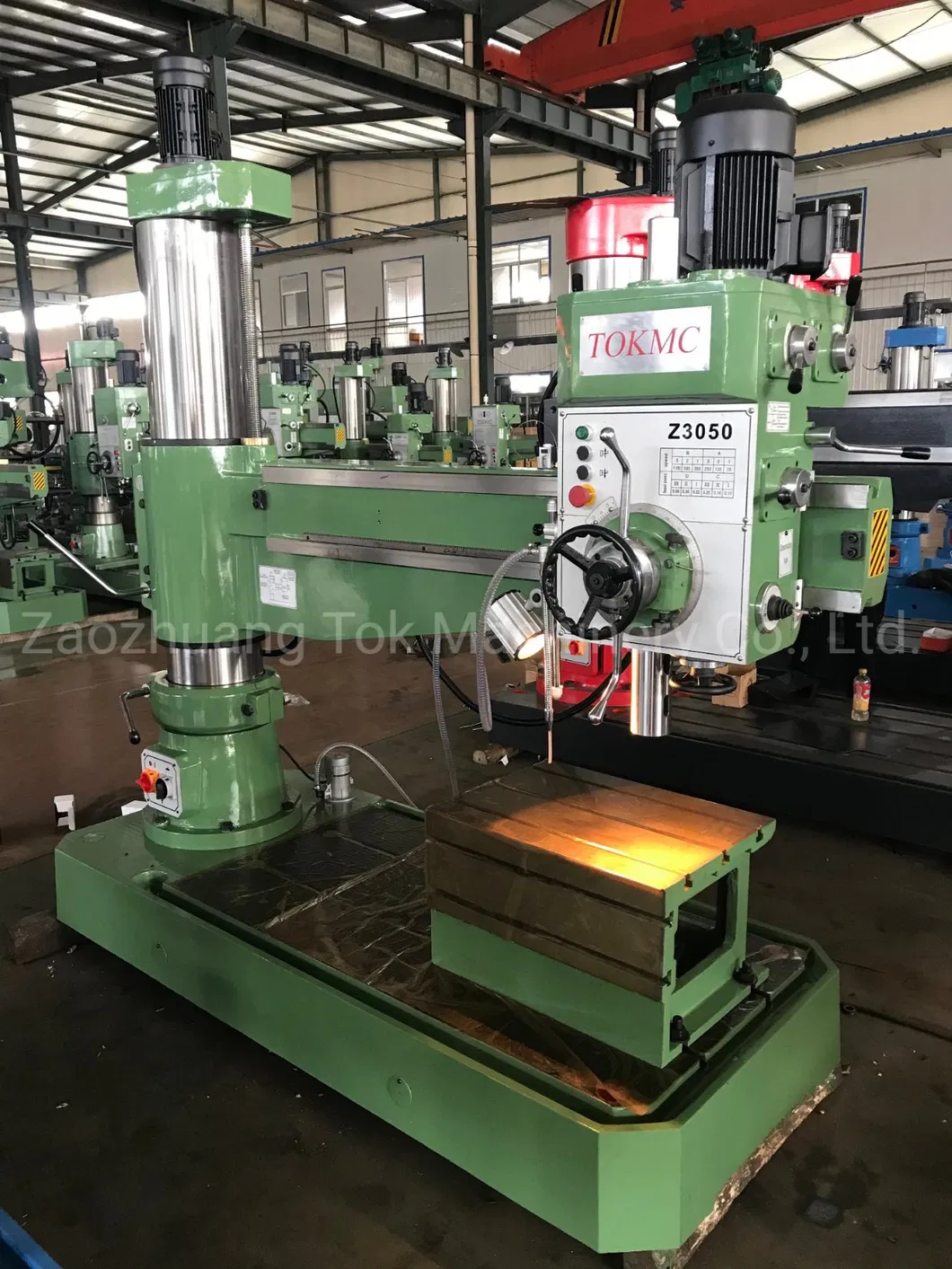

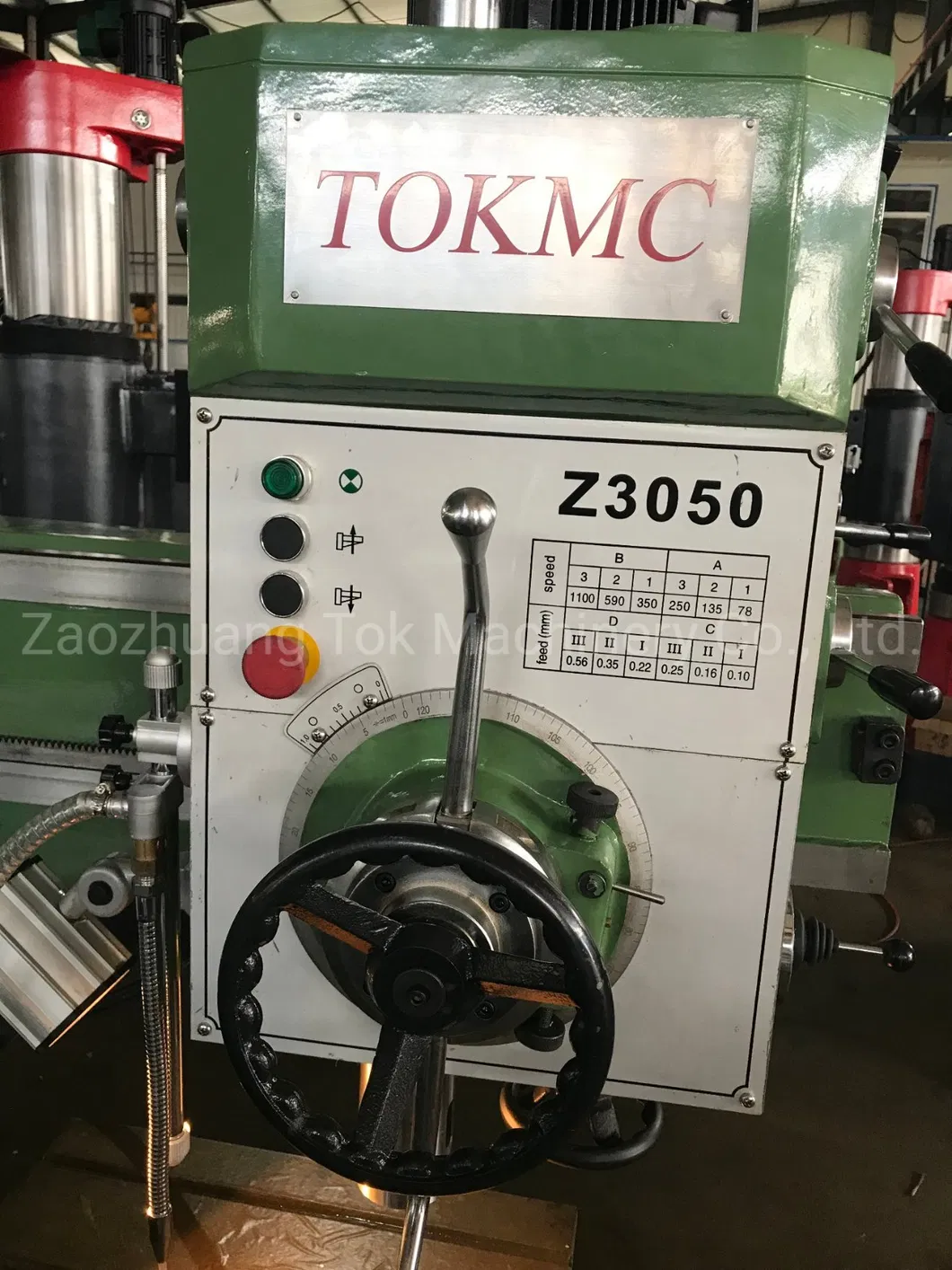

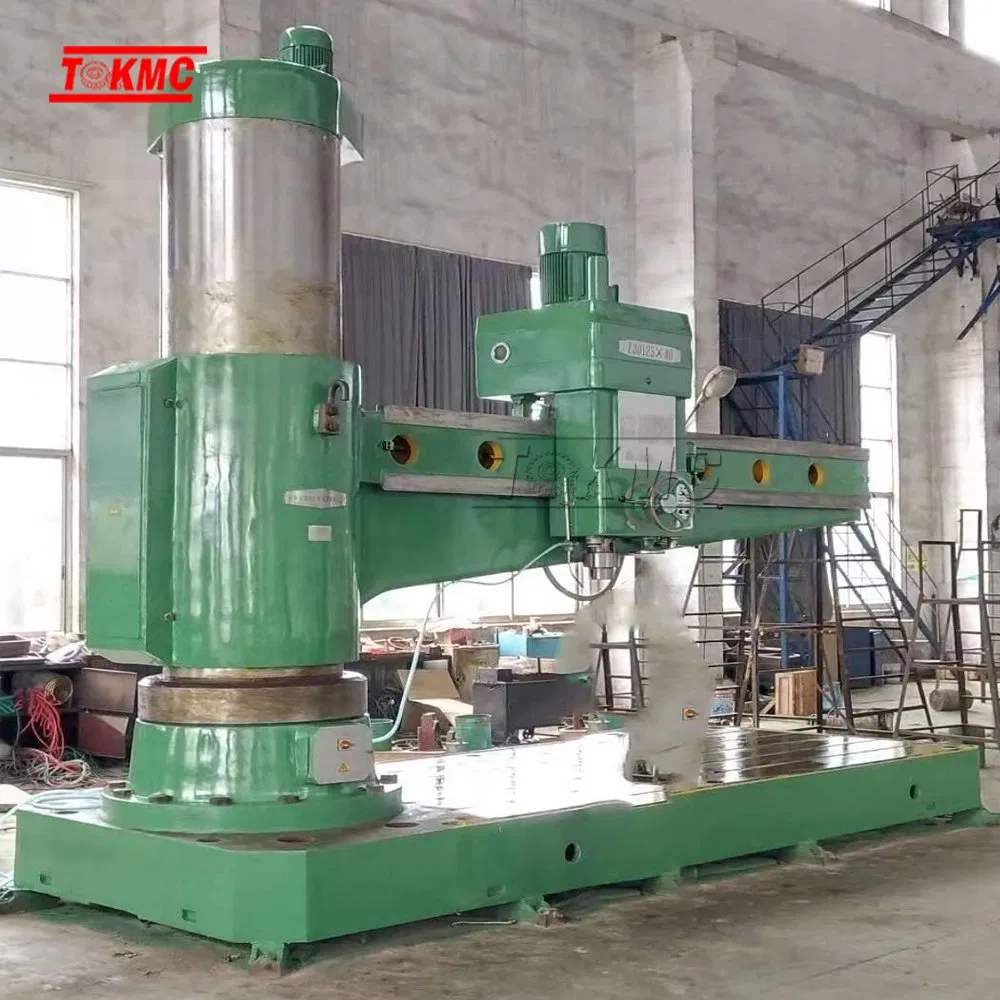

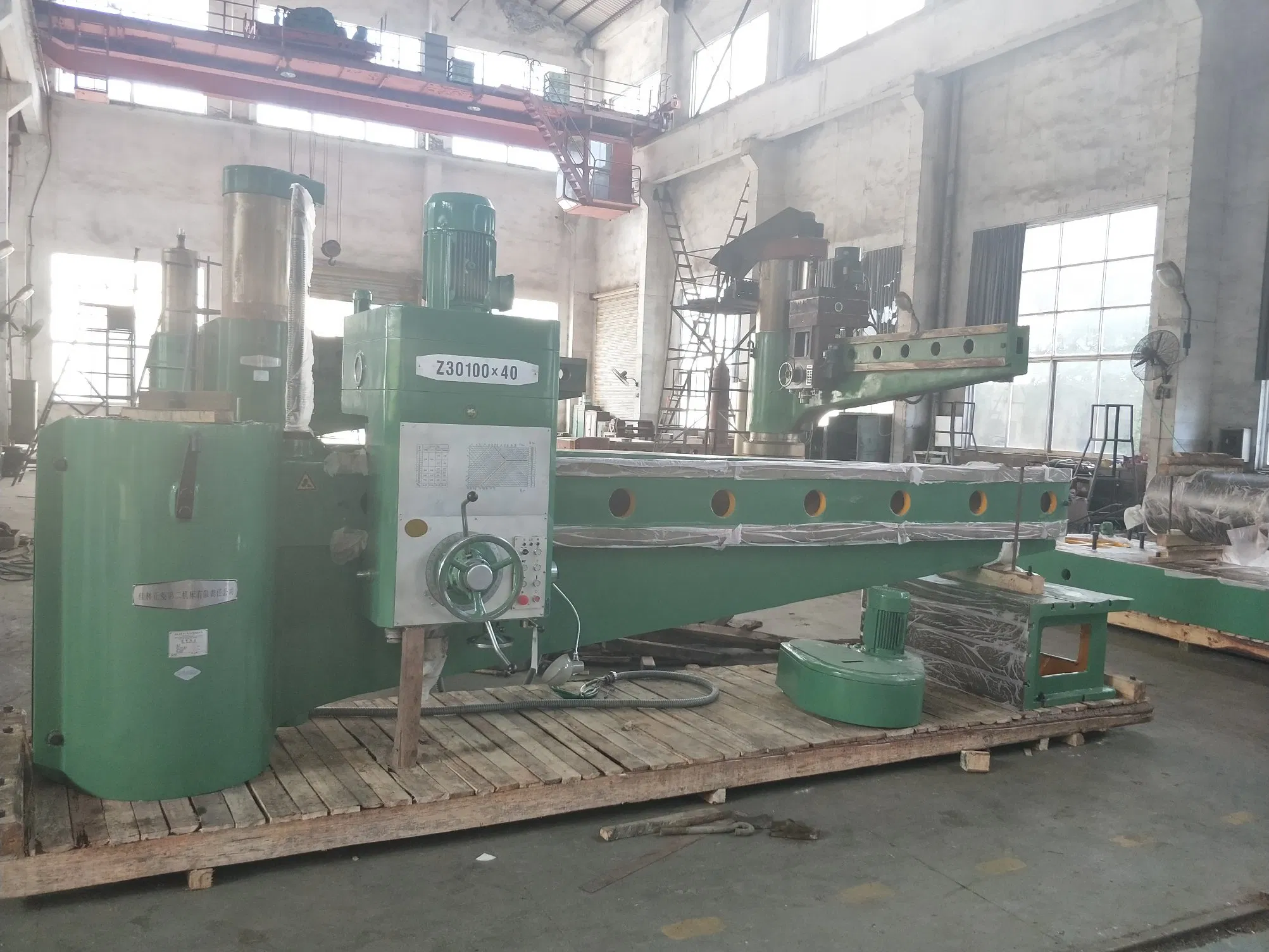

Heavy Duty Radial Drilling Machine (Z30100X31)
heavy duty vertical drilling machineSR.NO DESCRIPTIONZ30100x31Z30100x401CAPACITY DRILLING(CI)110 mm 110 mm DRILLING(MS)100 mm100 mm BORING (MS) 300 MM 300 MM TAPPING (CI) 50 MM 50 MM TAPPING (MS)75 MM 75 MM 2DRILLING HEAD SPINDLE NOSEMT6 MT6 SPINDEL NOSE OUT......
Send Inquiry
Product Description
heavy duty vertical drilling machine
Other product :
| SR.NO | DESCRIPTION | Z30100x31 | Z30100x40 |
| 1 | CAPACITY | ||
| DRILLING(CI) | 110 mm | 110 mm | |
| DRILLING(MS) | 100 mm | 100 mm | |
| BORING (MS) | 300 MM | 300 MM | |
| TAPPING (CI) | 50 MM | 50 MM | |
| TAPPING (MS) | 75 MM | 75 MM | |
| 2 | DRILLING HEAD | ||
| SPINDLE NOSE | MT6 | MT6 | |
| SPINDEL NOSE OUTSIDE DIA | 114 MM | 114 MM | |
| RAM DIA | |||
| TRAVEL OF SPINDLE | 500 mm | 500mm | |
| NUMBER OF SPINDLE SPEED MIN./ MAX. | 22 steps | 22 steps | |
| SPEED MIN-MAX | 8-1000 rpm | 8-1000 rpm | |
| NUMBER OF POWER FEEDS | 16 steps | 16 steps | |
| RANGE OF POWER FEED | 0.06~3.2 mm/r | 0.06~3.2 mm/r | |
| 3 | POWER | ||
| DRILL HEAD | 15 kw | 15 kw | |
| TWO SPEED MOTOR | NO | NO | |
| LIFTING ARM | 3 kw | 3 kw | |
| 4 | WORKING RANGE | ||
| COLUMN DIA | 600 MM | 600 MM | |
| DIST. FROM SPINDLE TO BASE.MIN-MAX | 700-2500 mm | 700-2500 mm | |
| DIST. FROM COLUMN TO CENTRE MIN-MAX | 560-3150 mm | 560-4000 mm | |
| DRILLING HEAD TRAVEL | 1300 mm | 1300 mm | |
| DRILLING RADIUS | 2590 mm | 3440 mm | |
| TRAVERSE OF ARM | 1300 mm | 1300 mm | |
| 5 | BASE PLATE | ||
| HEIGHT OF BASE PLATE | 360 MM | 360 MM | |
| WORKING SURFACE | 1250x800x560 mm | 1250x800x560 mm | |
| NUMBER/CENTRE DIST OF "T"SLOT | 5 | 5 | |
| | WIDTH OF CAST SIDE | 320 MM | 320 MM |
| OVERALL DIEMENTION | 479x178x258 CM 468x187x167 CM | 550x187 x258cm 552x186x172 cm | |
| 6 | WEIGHT | ||
| APPROX WT. | 20000 kgs | 22000 KGS |
