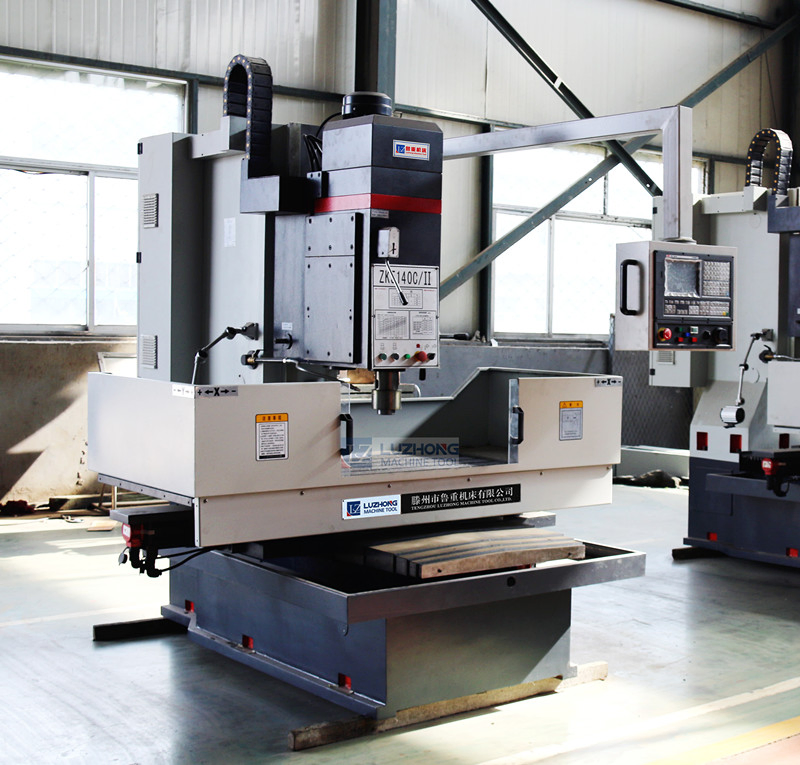

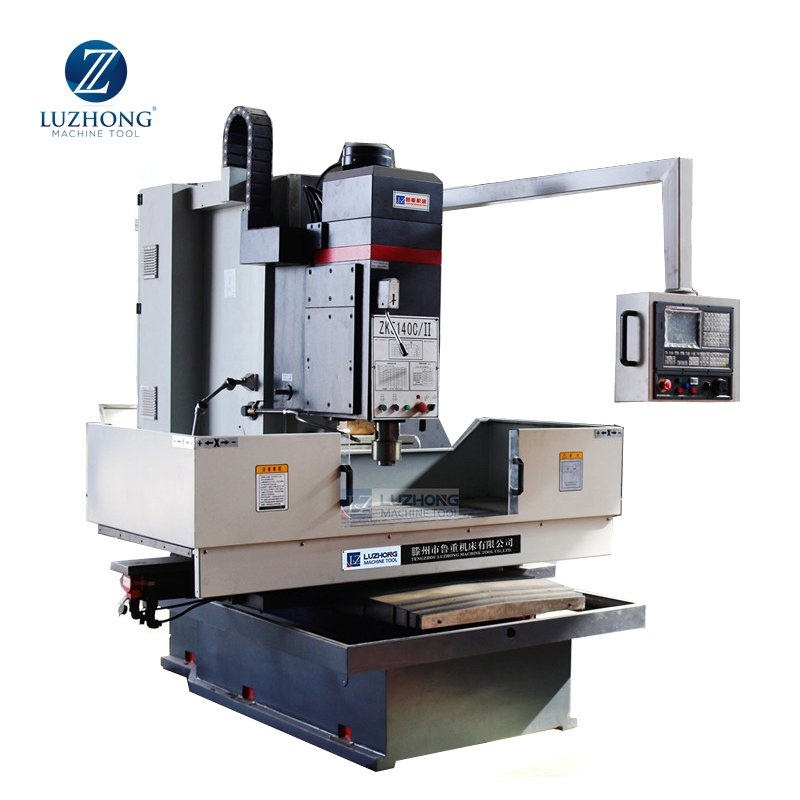

Metal lathe mini Conventional lathe ZK5140C Heavy duty lathe machine
Electric CNC drill machine price ZK5140C mini CNC drilling MachineProduct DescriptionProduct ParametersProduct main technical parameters: SpecificationsUnitZK5140CZK5150CZK5140C/1ZK5150C/1ZK5140C/2ZK5150C/2Max. drilling diametermm405040504050Max. Feed resistanceN160002000016000200001600020000Max. To......
Send Inquiry
Product Description
Product main technical parameters:

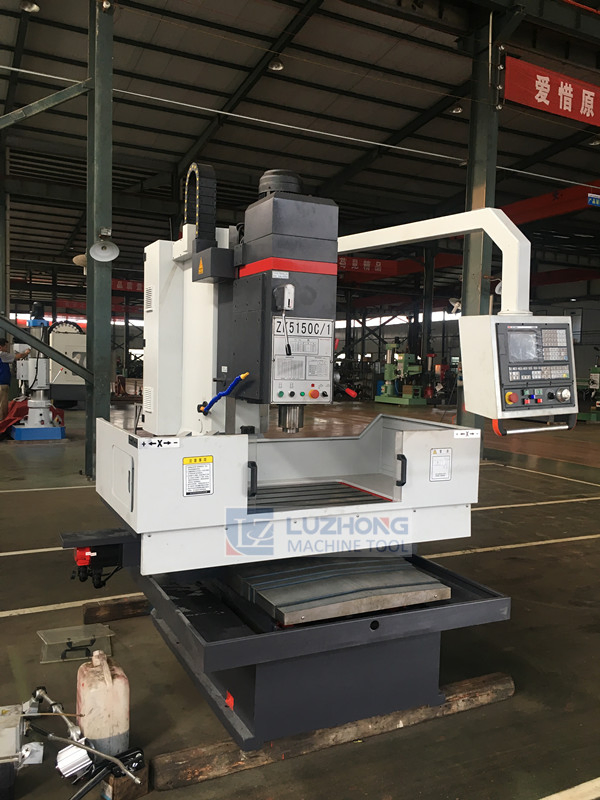

| Specifications | Unit | ZK5140C | ZK5150C | ZK5140C/1 | ZK5150C/1 | ZK5140C/2 | ZK5150C/2 | ||
| Max. drilling diameter | mm | 40 | 50 | 40 | 50 | 40 | 50 | ||
| Max. Feed resistance | N | 16000 | 20000 | 16000 | 20000 | 16000 | 20000 | ||
| Max. Torque of spindle | Nm | 350 | 400 | 350 | 400 | 350 | 400 | ||
| Spindle taper | Morse | 4 | 5 | 4 | 5 | 4 | 5 | ||
| Main motor power | kw | 3 | 3 | 3 | |||||
| Range of spindle speed | r/min | 31.5-1400 | 31.5-1400 | 31.5-1400 | |||||
| Feed range | X.Y axis | mm/ min | 0.6-3000 | 0.6-3000 | 0.6-3000 | ||||
| mm/ min | 0.3-2000 | 0.3-2000 | 0.3-2000 | ||||||
| Rapid feed Z axis | mm/ min | 6000(9000) | 6000(9000) | 6000(9000) | |||||
| mm/ min | 3000(4500) | 3000(4500) | 3000(4500) | ||||||
| Spindle box stroke | mm | 470 | 470 | 470 | |||||
| The axis of travel | Table X-axis | mm | 600 | 600 | 1000 | ||||
| Table Y-axis | mm | 400 | 600 | 600 | |||||
| Spindle Z-axis | mm | 250 | 250 | 250 | |||||
| Distance between spindle nose to worktable | mm | 0-600 | 0-560 | 0-600 | 0-560 | 0-600 | 0-560 | ||
| Size of worktable (L*W ) | mm | 850×450 | 850×650 | 1250×650 | |||||
| Positioning accuracy (X and Y) | mm | 0.05(0.04) | 0.05(0.04) | 0.05(0.04) | |||||
| Repeat positioning accuracy (X and Y) | mm | 0.02(0.015) | 0.02(0.015) | 0.02(0.015) | |||||
| Dimensions (L*W*H) | mm | 1550×1530×2512 | 1550×1740×2512 | 1800×1854×2512 | |||||
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
