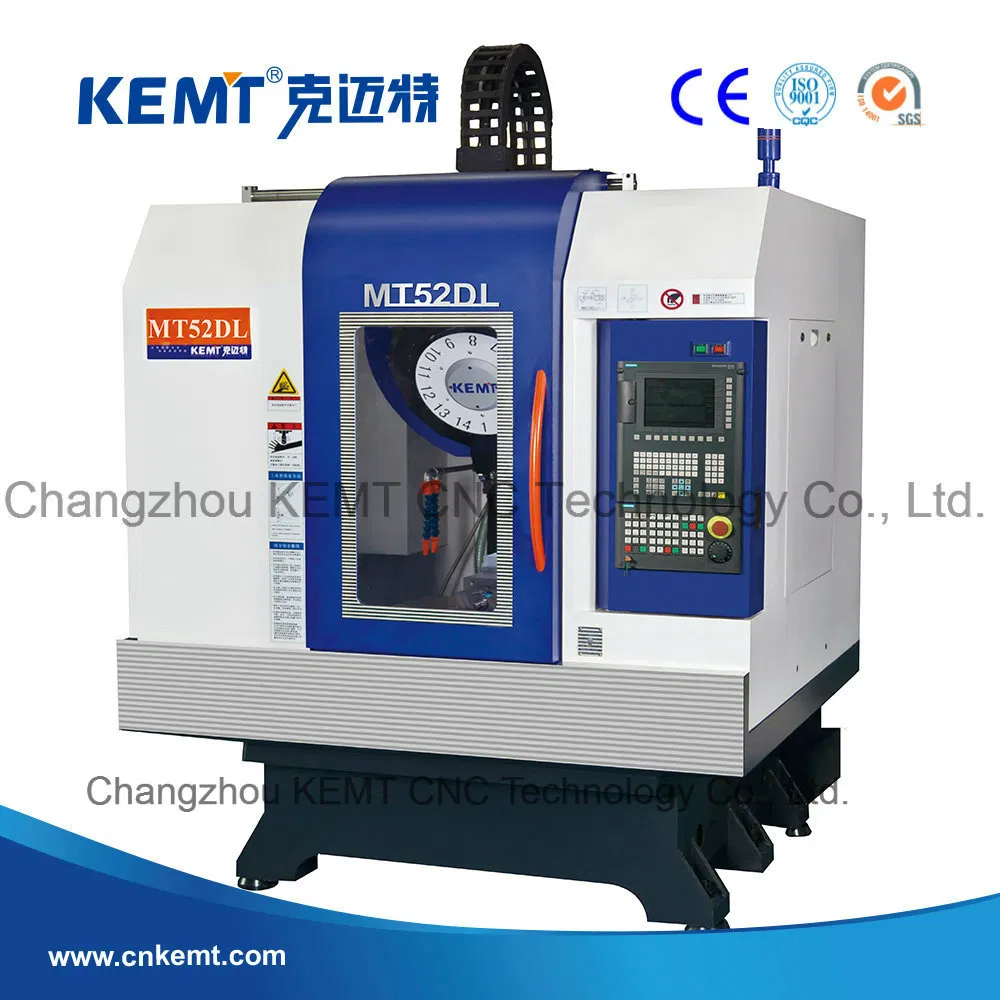

Mt52dl- 21t Advanced Siemens-System High-Speed CNC Drilling and Milling Machine

Product Description

1.Specification

Model		MT52D
Item		SIEMENS
Table	Size	600(23.57)*380(14.93) mm(inch)
Table	Max. bearing weight	300(11.79) kg(lbs)
Travel	X-axis	520(20.43) mm(inch)
	Y-axis	400(15.71) mm(inch)
	Z-axis	300(11.78) mm(inch)
	Distance from spindle to table surface	180(7.09)-480(18.90) mm(inch)
Spindle	Spindle speed	12000/15000/20000/24000 rpm
	Tapping speed	6000 rpm
	Tapper	7/24
Feeding rate	Rapid rate X/Y/Z axes	56(2.2)/56(2.2)/56(2.2) m/min(inch/min)
Feeding rate	Cutting feeding rate	1-22,000(866.14) mm/min(inch/min)
ATC unit	Tool holder specification	BT30
	Pop-rivet Model	P30T-1
	Tool storage capacity	21 pcs
	Max. tool length	200(7.86) mm(inch)
	Max. tool diameter	80(3.14) mm(inch)
	Max. tool weight	3(6.61) kg(lbs)
Tool change time	Tool to Tool	0.8 Sec.
Tool change time	Chip to Chip	1.3 Sec.
Electric motors	Spindle motor	4.8/ 19 kw
Power source	Power	AC220+/-10%
Power source	Power capacity	15 KVA
Machine dimensions	Machine height	2,600(102.36) mm(inch)
	Floor space [with control unit door opened]	2,421(95.32)*1,650(64.96) mm(inch)
	Weight(including control unit and splash guard)	3,500(7716) kg(lbs)
Accuracy	Positioning accuracy	0.005/300(0.0002 / 11.8) mm(inch)
Accuracy	Repeat positioning accuracy	+/-0.003(+/-0.00012) mm(inch)

2. Features
Larger work table improve machining ability.
Greatly reduced tool change time to achieve high productivity (Cut to Cut 1.3s)
Optimized the shape of the structure and arrangement of ribs to enhance machine rigidity, leading to improved cutting performance.

3. Standard accessories
(1) Work Light
(2) Signal Light
(3) Foundation Plates and Bolts
(4) 14-Tool Changer
(5) Cooling System
(6) Automatic Lubricating Device
(7) Splash-proof Metal Sheet
(8) Toolkit
(9) Bed Shower
(10) Safety Door Lock
(11) Hand-operated MPG
(12) Special Technical Documents

4. Optional Accessories
(1) Hydraulic Unit
(2) NC rotary table
(3) NC Slant Rotary Worktable
(4) Hand-operated MPG
(5) Transformer (Unnecessary for SIEMENS System)
(6) Air-conditioner for Electrical Cabinet
(7) Higher Column
(8) Spraying Water from Spindle Center
(9) Spindle Cooling System

5. Part of applications
(1) auto industry
(2) medical industry
(3) military industry
(4) IT industry
(5) others

6. Factory Advantages
(1) Annual production: 2000sets.

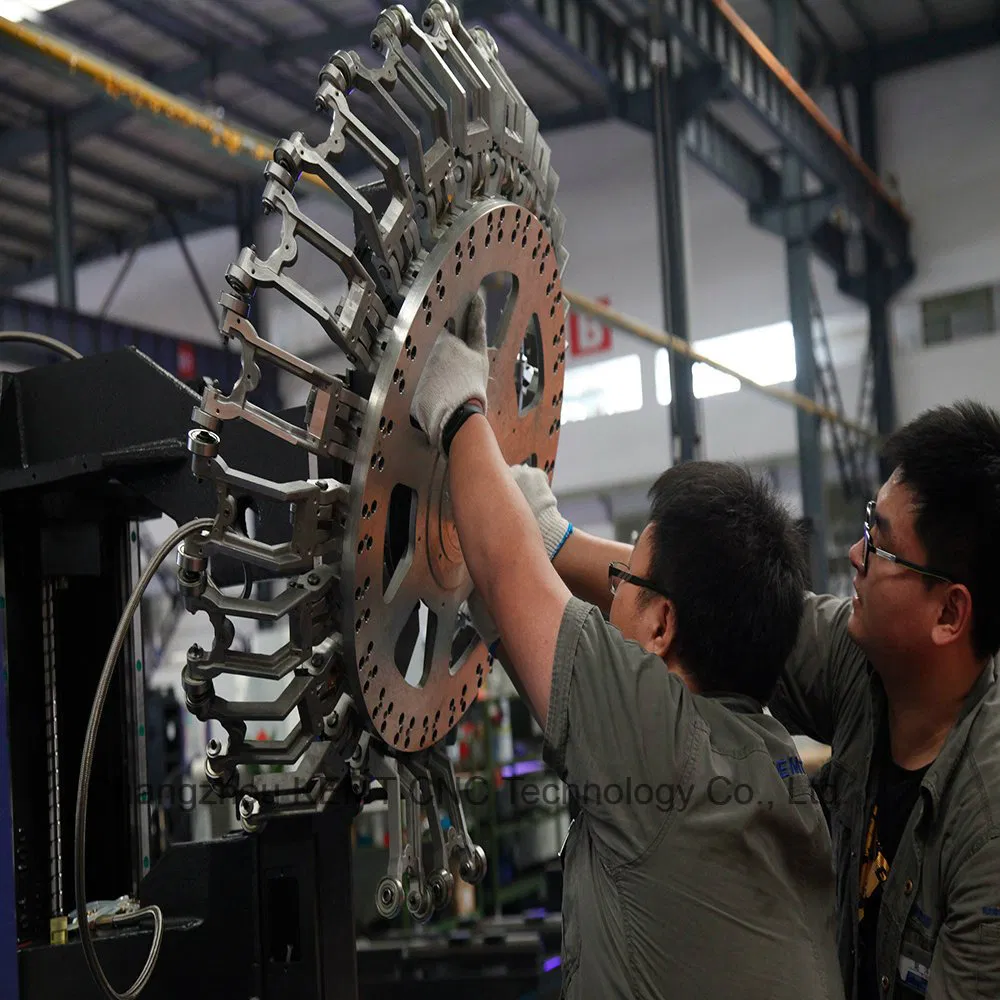

(2) Spindle and tool changer are produced independently, based on German technology.
(3) R&D center: founded in 2006.
(4) Patents and honors: more than 50 certificates.
(5) Sales network: 9 regions, 23 offices in China; 5 branches around the world.
(6) 3 part warehouse: 1 in Shanghai, 1 in Changzhou and 1 at oveseas.
