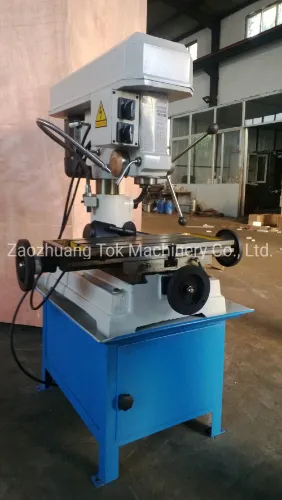

Single Phase, Pulley Head Mini Milling Drilling Machine Zx20
mini bench driling milling machine zx20SpecificationZx16Zx20Max. Drilling dia mm1620Max.vertical milling dia mm1012Max.end milling dia. mm4050Spindle hole taperMT2MT2Spindle travel85100Distance spindle axis to column182200Column size72mm78mmDistance spindle nose to table surface60-40070-410Table si......
Send Inquiry
Product Description
mini bench driling milling machine zx20
| Specification | Zx16 | Zx20 |
| Max. Drilling dia mm | 16 | 20 |
| Max.vertical milling dia mm | 10 | 12 |
| Max.end milling dia. mm | 40 | 50 |
| Spindle hole taper | MT2 | MT2 |
| Spindle travel | 85 | 100 |
| Distance spindle axis to column | 182 | 200 |
| Column size | 72mm | 78mm |
| Distance spindle nose to table surface | 60-400 | 70-410 |
| Table size | 230x150 | 500x200 |
| Table travel longitudinal and transwerse | 230x150 | 300x150 |
| Body travel | 200 | 250 |
| Spindle speeds series | 12 | 12 |
| Spindle speed ranges 50hz r.p.m | 250-3200 | 250-3200 |
| Motor watt | 370 | 550 |
| Net weight/Gross weight kgs | 105/120 | 160/184 |
| Package size mm | 550x580x610 550x430x420 | 710x680x620 640x490x430 |
