Product Description

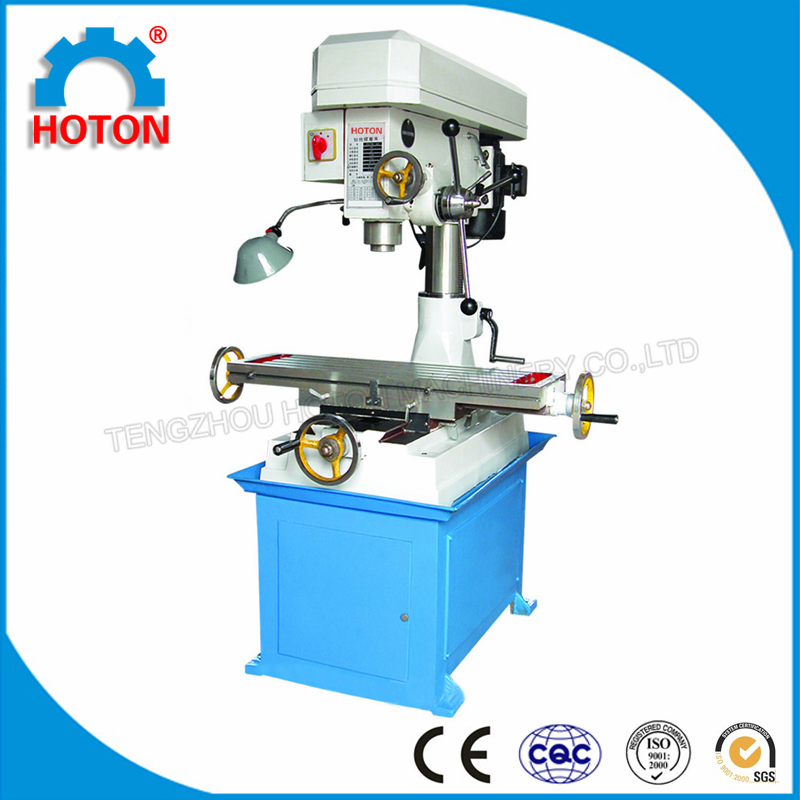

Small Vertical Drilling Milling Machine for Sale (ZXTM40)

SMALL DRILLING AND MILLING MACHINE FEATURES:
1.Belt-driven and round column.
2. Milling, drilling, tapping, boring and reaming.

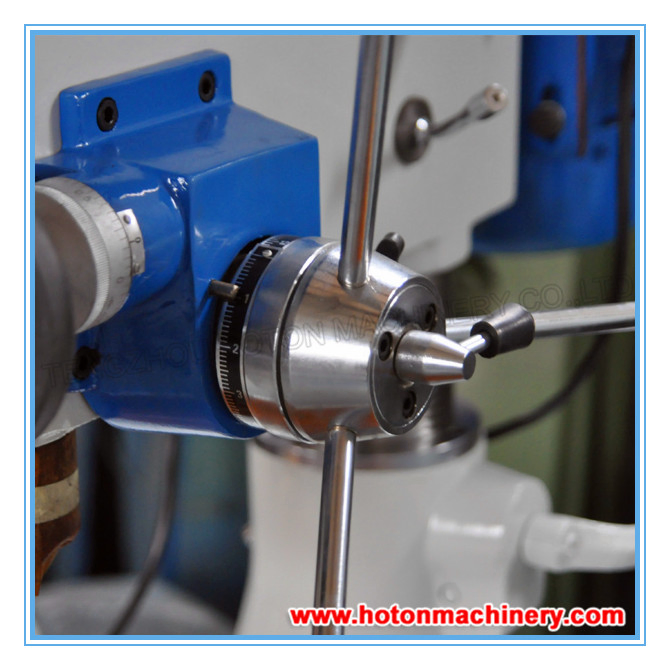

3. Micro feed precision.
4. Strong rigidity, powerful cutting and precise positioning.
SPECIFICATIONS:

SPECIFICATION	UNIT	ZXTM40C
Drilling capacity	mm	40
End milling capacity	mm	100
Vertical milling capacity	mm	20
Boring capacity	mm	120
Tapping capacity	mm	M16
Distance between spindle nose and worktable	mm	120-550
Range of spindle speed	r.p.m	168-3160
Spindle travel	mm	120
Table size	mm	800 x 240
Table travel	mm	400 x 250
Overall dimensions	mm	1100 x 1050 x 1330
Motor power	kw	1.5
N.W/G.W	kg	410/460

Contact Us:

Andy Wang

TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 13506328892
hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

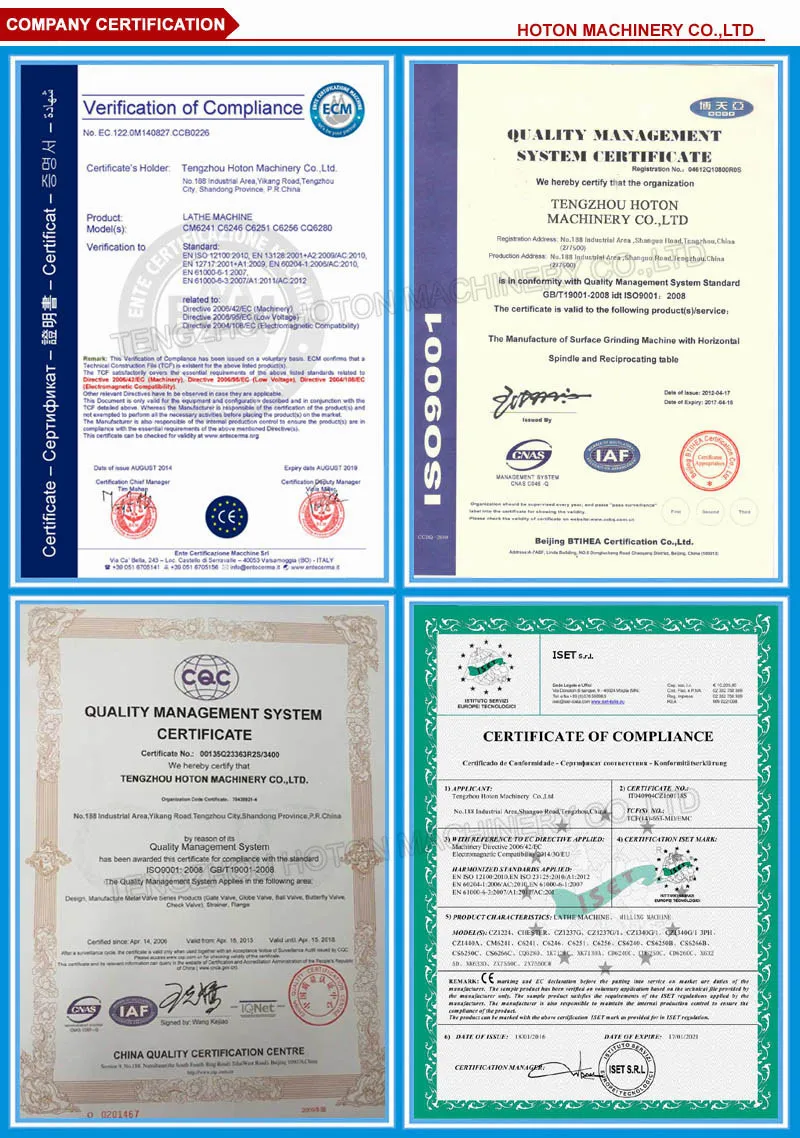

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.

Quality first,Constantly perfecting skills.
