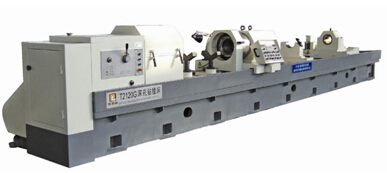

T2110g Deep Hole Drilling and Boring Machine
T2110GThe usage of the machine: the machine is a special equipment for drilling and boring deep hole of cylindrical workpieces. While boring, the oil supplied from the oil pressure head take the metal chips from the cutting area to the lantern and chip converyer in the front of the headstock, and dr......
Send Inquiry
Product Description
T2110G
The usage of the machine: the machine is a special equipment for drilling and boring deep hole of cylindrical workpieces. While boring, the oil supplied from the oil pressure head take the metal chips from the cutting area to the lantern and chip converyer in the front of the headstock, and drilling adopt internal metal chips remving method (BTA method), the oil supplied from oil pressure head remove the chips from the cutting area to the chips receiver in the back of the machine through the innner hole of the drilling tube.
The machine is controled by PLC, and the feed of the oil pressure head and carriage is controled by the servo motor, The feeding rack installed in the middle of the bed guideway guarantee the requirement of feed accuracy and rigidity for the long travel. The protection guard installed on both sides of the bed and overground oil tank improve the working environment. The machine can be mated with automatic or manual telescopic tool so as to improve the machining efficiency greatly.
This is a easy operating, high efficiency and environment protective deep hole drilling and boring machine.
Main Specifications and Features
specifications technical parameter
The range of drilling diameter Φ20mm-60mm
The max diameter of boring Φ40-100mm
The height of center 400mm
The range of max depth of boring 1000-5000mm
The diameter of chuck Φ400mm
Workpiece clamed dia. of steady rest Φ50mm-400mm
Spindle speed range and steps 70-1200r/min three grade stepless
Feeding speed range 5-2000mm/min,3 gears, 12 grades
Main motor N=15kW
Feed speed 5-2000 rpm, stepless
Feeding motor N=4.5kW servo motor
Motor of oil pressure head N=4.5kW servo motor
Cooling pump motor N=5.5kW n=1440r/min, 2 groups
The rated pressure of cooling system 2.5Mpa, 6.3MPa
Flow of coolant 80 180 280L/min
Optional scheme
1. The machine can be mated with N=22kw frequency converting spindle motor, then the spindle speed will change to 60-1200rpm with 3 gears stepless speeds.
2. T2110G/1 is mated with a travel headstock with rotating drilling bar and a 15kw motor so that the workpiece and drilling head can be rotate oppositely, and the spindle speed of the travel headstock is 60-800rpm.
3.the machine can be mated with 30kw spindle motor so that the drilling diameter of the hole can reach 80mm.
4. the machine can be mated with CNC system, e.g. SIEMENS 828D or FANUC oi mate or GSK or KND system.
The usage of the machine: the machine is a special equipment for drilling and boring deep hole of cylindrical workpieces. While boring, the oil supplied from the oil pressure head take the metal chips from the cutting area to the lantern and chip converyer in the front of the headstock, and drilling adopt internal metal chips remving method (BTA method), the oil supplied from oil pressure head remove the chips from the cutting area to the chips receiver in the back of the machine through the innner hole of the drilling tube. The machine is controled by PLC, and the feed of the oil pressure head and carriage is controled by the servo motor, The feeding rack installed in the middle of the bed guideway guarantee the requirement of feed accuracy and rigidity for the long travel. The protection guard installed on both sides of the bed and overground oil tank improve the working environment. The machine can be mated with automatic or manual telescopic tool so as to improve the machining efficiency greatly.
This is a easy operating, high efficiency and environment protective deep hole drilling and boring machine.
Main Specifications and Features
specifications technical parameter
The range of drilling diameter Φ20mm-60mm
The max diameter of boring Φ40-100mm
The height of center 400mm
The range of max depth of boring 1000-5000mm
The diameter of chuck Φ400mm
Workpiece clamed dia. of steady rest Φ50mm-400mm
Spindle speed range and steps 70-1200r/min three grade stepless
Feeding speed range 5-2000mm/min,3 gears, 12 grades
Main motor N=15kW
Feed speed 5-2000 rpm, stepless
Feeding motor N=4.5kW servo motor
Motor of oil pressure head N=4.5kW servo motor
Cooling pump motor N=5.5kW n=1440r/min, 2 groups
The rated pressure of cooling system 2.5Mpa, 6.3MPa
Flow of coolant 80 180 280L/min
Optional scheme
1. The machine can be mated with N=22kw frequency converting spindle motor, then the spindle speed will change to 60-1200rpm with 3 gears stepless speeds.
2. T2110G/1 is mated with a travel headstock with rotating drilling bar and a 15kw motor so that the workpiece and drilling head can be rotate oppositely, and the spindle speed of the travel headstock is 60-800rpm.
3.the machine can be mated with 30kw spindle motor so that the drilling diameter of the hole can reach 80mm.
4. the machine can be mated with CNC system, e.g. SIEMENS 828D or FANUC oi mate or GSK or KND system.
