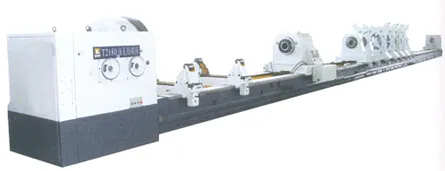

T2180
Deep hole drilling and boring machine
Usage of the machine: the machine is a special equipment for drilling and boring deep hole of cylindrical workpieces. While boring, the oil supplied from the oil pressure head take the metal chips from the cutting area to the lantern and chip converyer in the front of the headstock, and drilling adopt internal metal chips remving method (BTA method), the oil supplied from oil pressure head remove the chips from the cutting area to the chips receiver in the back of the machine through the innner hole of the drilling tube.
The bed of the machine is rectangle quenched guide way which has high antiwear capability, the feed lead screw is installed in the middle of the guide way. The clamp workpiece of the oil pressure head adopt servo motor so it is reliable and safe. The spindle of the oil pressure head has high concentricity with the spindle of the headstock. And the change of the guide bush is also convenient.
This is a easy operating, high efficiency and environment protective deep hole boring machine.
Main Specifications and Features
specifications technical data
Drilling diameter Φ60-Φ120mm
Max boring diameter Φ800mm
Range of boring depth 4000-16000mm
Clamped diameter of chuck Φ400-Φ1250mm
Clamped diameter of steady rest Φ270-Φ950mm
Clamped diameter of roller support Φ600-Φ1200mm
Center height 800mm
Spindle speed range ,grades 3-120rpm, three grade , stepless
Feed range 0.5-300mm/min(stepless)
Main motor N=55kW ,DC
Feed motor N=7.5KW n=1500rpm, servo motor
Motor of travel headstock with totating
Drilling tube N=45kW
Spindle speed of the travel headstock
With rotating drilling tube 32-400r/min 12 grades
Coolant pump N=22kW n=1440r/min (2 group)
Rated pressure of coolant system 2.5MPa
Coolant flow 100-800L/min
Max loading weight of workpiece 20t
Optional scheme:
the above machines can be mated with CNC system, e.g. SIEMENS 828D or FANUC oi mate or GSK or KND system or other system chosen by user.
Deep hole drilling and boring machineUsage of the machine: the machine is a special equipment for drilling and boring deep hole of cylindrical workpieces. While boring, the oil supplied from the oil pressure head take the metal chips from the cutting area to the lantern and chip converyer in the front of the headstock, and drilling adopt internal metal chips remving method (BTA method), the oil supplied from oil pressure head remove the chips from the cutting area to the chips receiver in the back of the machine through the innner hole of the drilling tube.
The bed of the machine is rectangle quenched guide way which has high antiwear capability, the feed lead screw is installed in the middle of the guide way. The clamp workpiece of the oil pressure head adopt servo motor so it is reliable and safe. The spindle of the oil pressure head has high concentricity with the spindle of the headstock. And the change of the guide bush is also convenient.
This is a easy operating, high efficiency and environment protective deep hole boring machine.
Main Specifications and Features
specifications technical data
Drilling diameter Φ60-Φ120mm
Max boring diameter Φ800mm
Range of boring depth 4000-16000mm
Clamped diameter of chuck Φ400-Φ1250mm
Clamped diameter of steady rest Φ270-Φ950mm
Clamped diameter of roller support Φ600-Φ1200mm
Center height 800mm
Spindle speed range ,grades 3-120rpm, three grade , stepless
Feed range 0.5-300mm/min(stepless)
Main motor N=55kW ,DC
Feed motor N=7.5KW n=1500rpm, servo motor
Motor of travel headstock with totating
Drilling tube N=45kW
Spindle speed of the travel headstock
With rotating drilling tube 32-400r/min 12 grades
Coolant pump N=22kW n=1440r/min (2 group)
Rated pressure of coolant system 2.5MPa
Coolant flow 100-800L/min
Max loading weight of workpiece 20t
Optional scheme:
the above machines can be mated with CNC system, e.g. SIEMENS 828D or FANUC oi mate or GSK or KND system or other system chosen by user.
