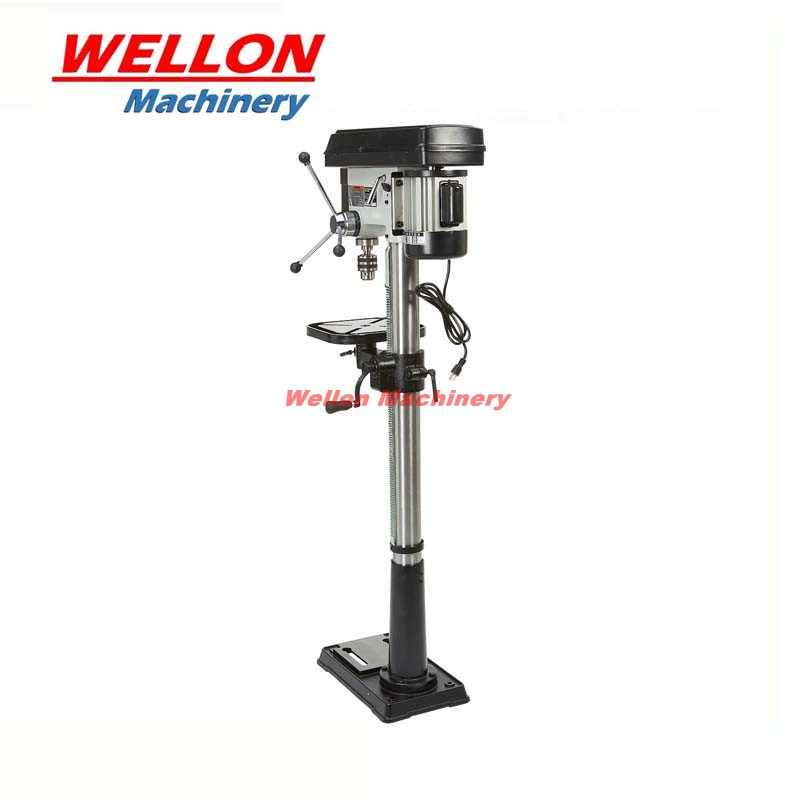

Vertical Drill Press Machine (ZJQ5132 Vertical Pillar Drilling Machine)
Performence Features:Keyed safety switch prevents accidental starting5-speed settings to accommodate various materials and thicknessesCast iron worktable, height adjustable and bevels up to 45 Degree left & rightScaled steel fence helps align, guide and brace workpieces, stop block for repetitiv......
Send Inquiry
Product Description
Performence Features:
Keyed safety switch prevents accidental starting

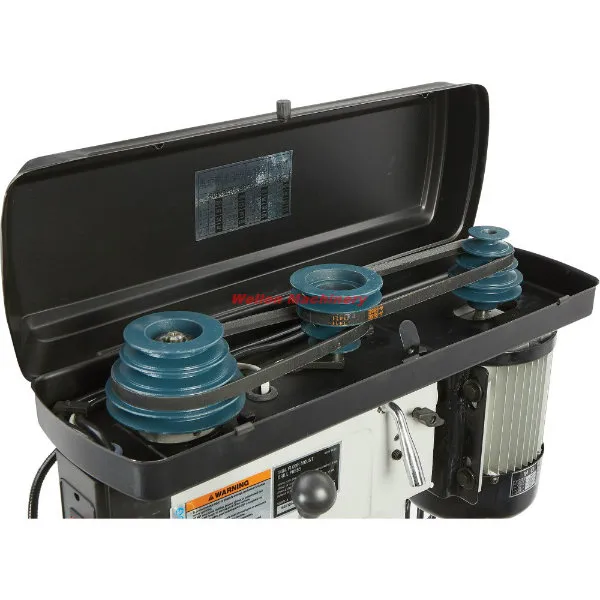

5-speed settings to accommodate various materials and thicknesses

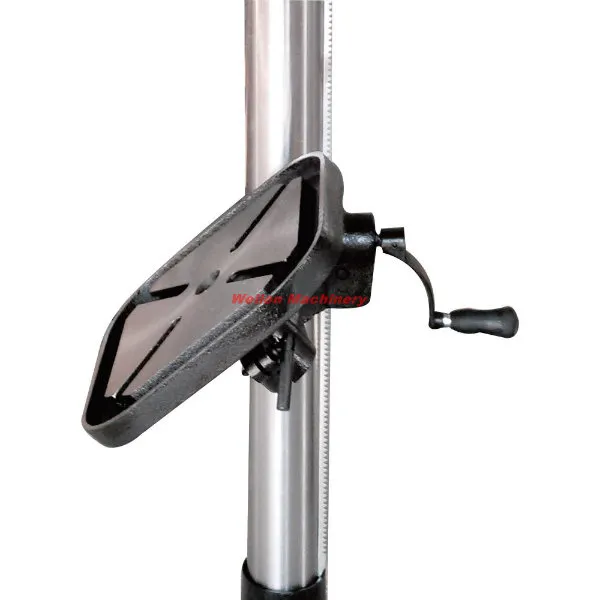

Cast iron worktable, height adjustable and bevels up to 45 Degree left & right
Scaled steel fence helps align, guide and brace workpieces, stop block for repetitive drilling jobs
Technical parameter:
| Model | ZJQ5132 |
| Motor Power | 1100W |
| Chuck | 32mm |
| Spindle Travel | 120mm |
| Spindle Taper | MT4 |
| Speed Change | 12 |
| Speed | 150-2450/180-2940 r/min |
| Swing | 440mm |
| Working Table size | 360x360mm |
| Base size | 470x380mm |
| Column diameter | 92mm |
| Total Height | 1710mm |
| Weight | 115/120kg |
| Packing Dimensions | 1415x650x305mm |
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
