Product Description

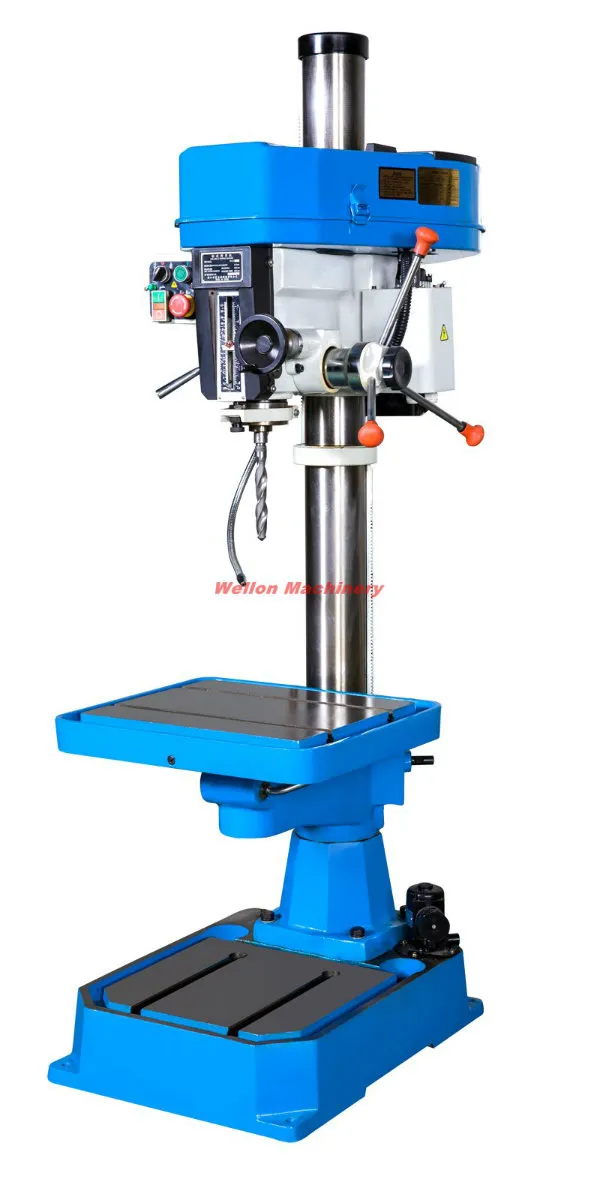

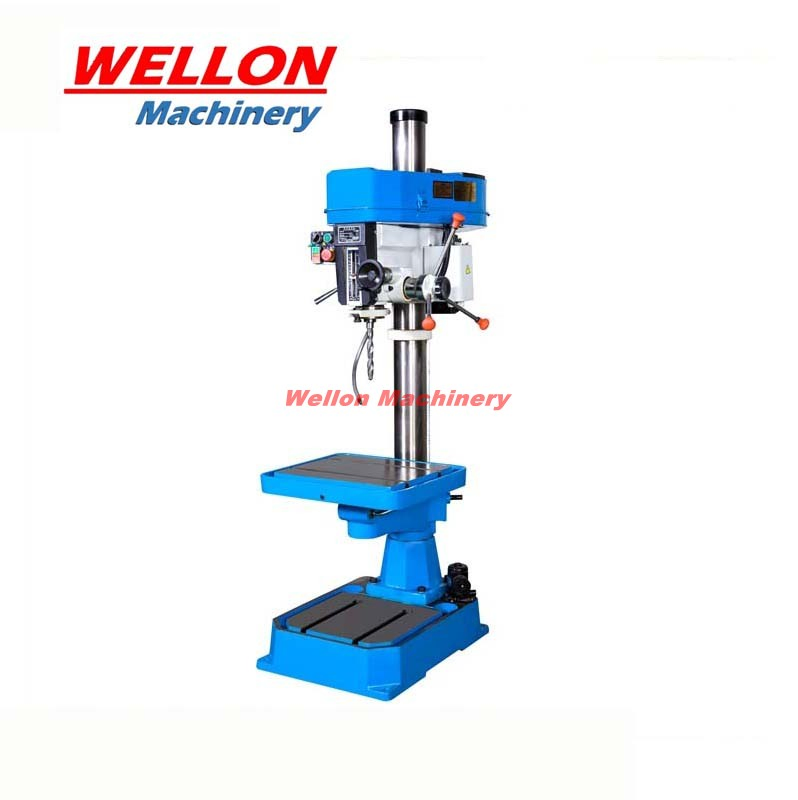

Vertical Drilling Tapping Machine (ZS-32HS / ZS-32PS)

Performence Features:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.

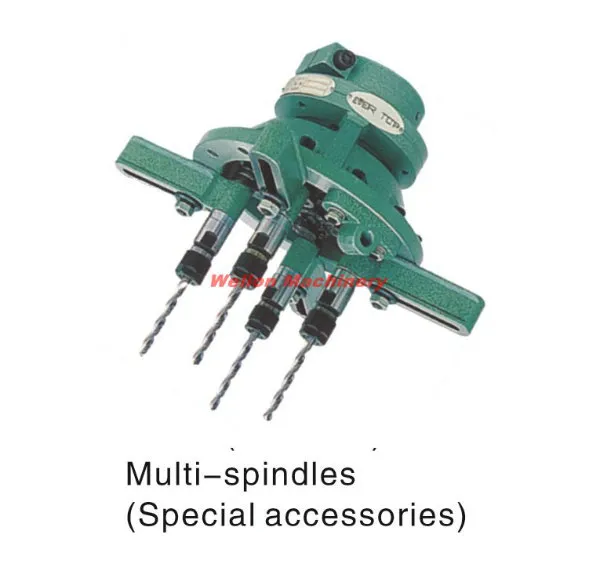

According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS32HS without coolant system, ZS30PS with coolant system
Technical parameter:

Model		ZS-32HS	ZS-32PS
Max. Drilling capacity	mm	31.5	31.5
Max. Tapping capacity	mm	(Cast iron) M20 (Steel)M16
Diameter of column	mm	115	115
Spindle travel	mm	130	130
Distance from spindle axis to column	mm	202	202
Max. Distance spindle nose to table	mm	790	790
Max. Distance spindle nose to base	mm	1245	1245
Spindle taper		MT3	MT3
Spindle speeds	r/min	100~2150	100~2150
Spindle speeds series		12	12
Dimension of worktable surface	mm	570x470	570x470
Table travel	mm	515	515
Dimension of base	mm	635x460	690x520
Motor	w	Single1100 Triple 1500
G.W/N.W	kg	345/305	360/320
Packing dimension	cm	80x75x186	86x78x191

Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard

Vertical Drilling Tapping Machine (ZS-32HS / ZS-32PS)
