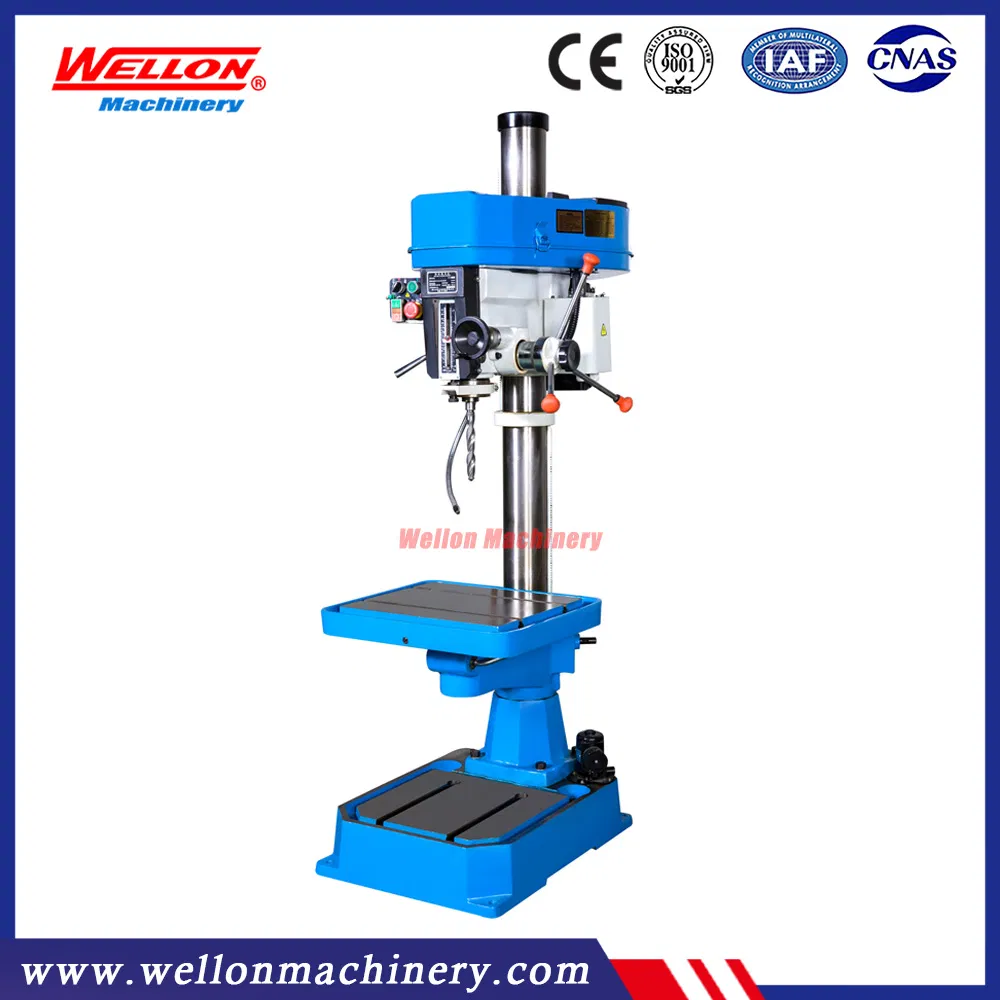

Vertical Drilling Tapping Machine ZS-32HS / ZS- 32PS
Product Description:Performence Features:The machine adopt gear driving and the driving moment is strong.The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.The head can rotated 360 degree and can tilted ±......
Send Inquiry
Product Description
Product Description:
Performence Features:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.

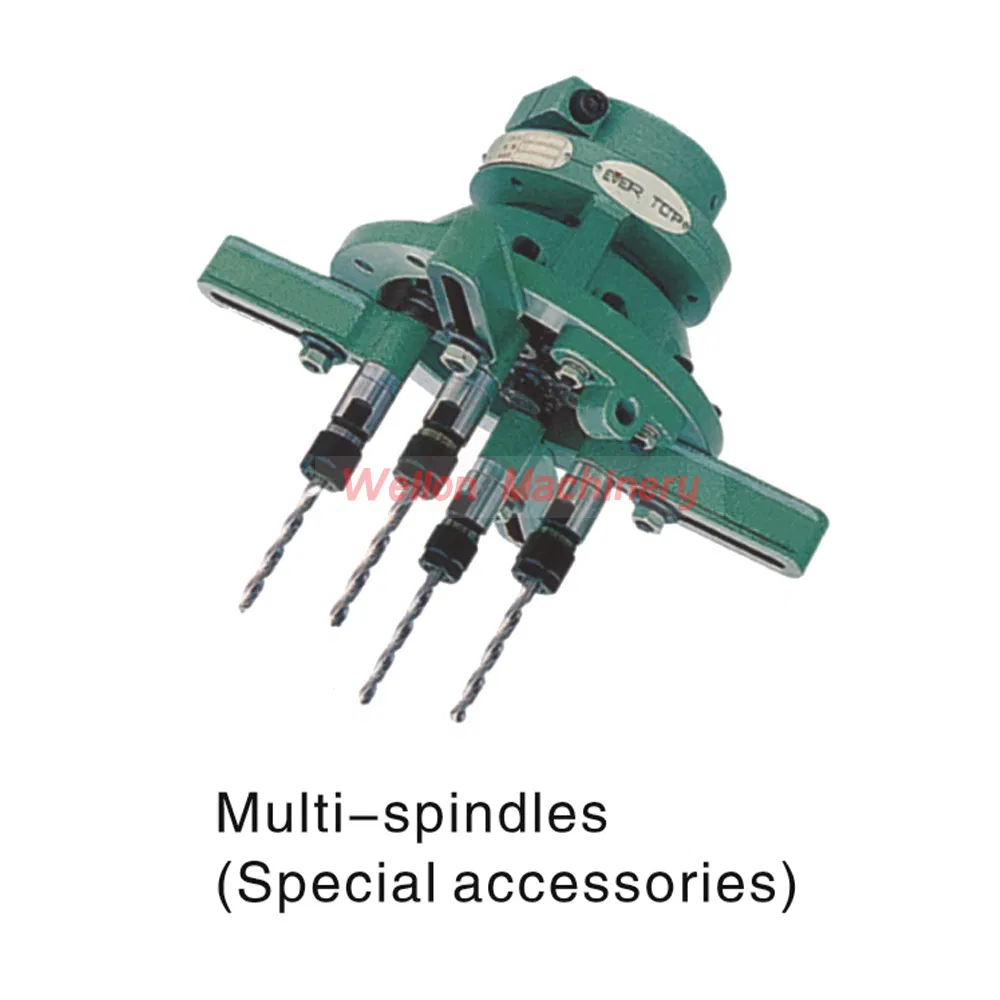

According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS32HS without coolant system, ZS30PS with coolant system
Technical parameter:
Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Company Information:
Contact Us:
Performence Features:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS32HS without coolant system, ZS30PS with coolant system
Technical parameter:
| Model | ZS-32HS | ZS-32PS | ||
| Max. Drilling capacity | mm | 31.5 | 31.5 | |
| Max. Tapping capacity | mm | (Cast iron) M20 (Steel)M16 | ||
| Diameter of column | mm | 115 | 115 | |
| Spindle travel | mm | 130 | 130 | |
| Distance from spindle axis to column | mm | 202 | 202 | |
| Max. Distance spindle nose to table | mm | 790 | 790 | |
| Max. Distance spindle nose to base | mm | 1245 | 1245 | |
| Spindle taper | MT3 | MT3 | ||
| Spindle speeds | r/min | 100~2150 | 100~2150 | |
| Spindle speeds series | 12 | 12 | ||
| Dimension of worktable surface | mm | 570x470 | 570x470 | |
| Table travel | mm | 515 | 515 | |
| Dimension of base | mm | 635x460 | 690x520 | |
| Motor | w | Single1100 Triple 1500 | ||
| G.W/N.W | kg | 345/305 | 360/320 | |
| Packing dimension | cm | 80x75x186 | 86x78x191 | |
Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard

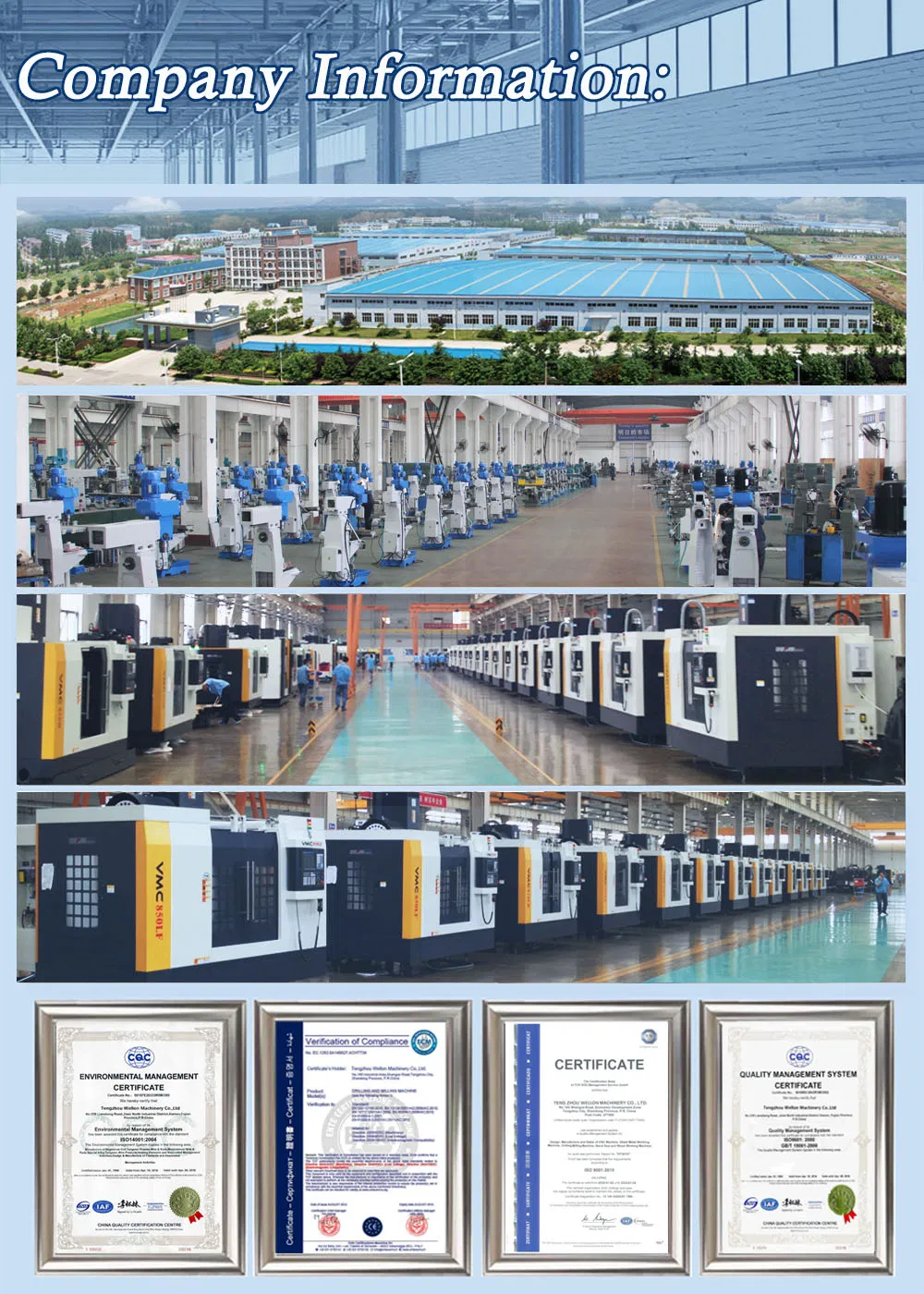

Company Information:
Contact Us:
