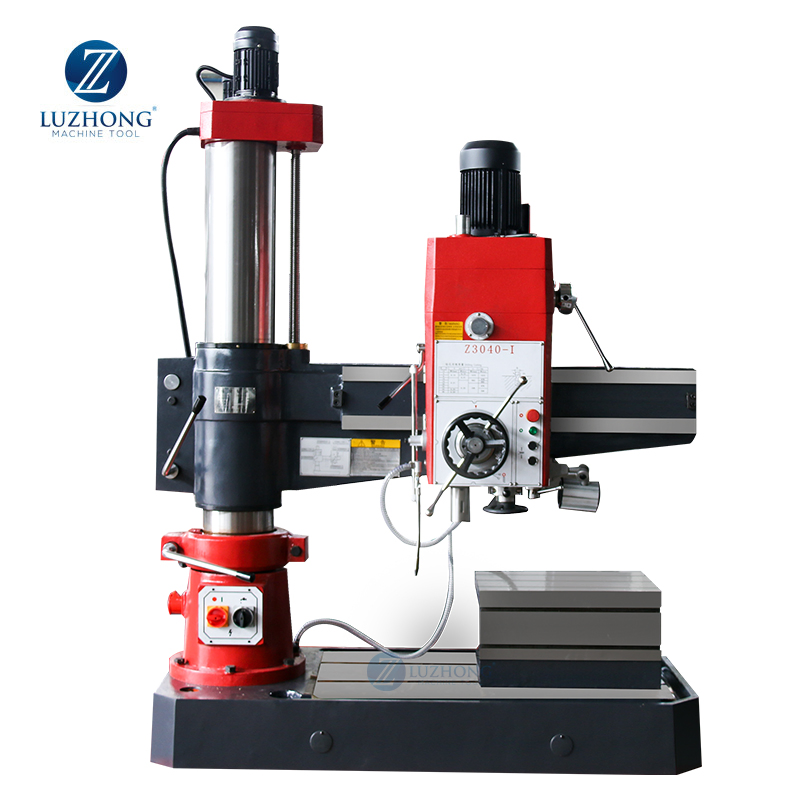

Z3040X11/I Mechanical/Hydraulic Radial Drilling Machine
Universal Z3040X11/I Radial Drilling MachineProduct Description Product ParametersProduct main technical parameters:SPECIFICATIONSZ3040×11/IMax.drilling dia(mm)40Headstock level migration distance (mm)715Distance from spindle axis to column surface (mm)330-1050Under the main axle is away f......
Send Inquiry
Product Description
Product main technical parameters:
| SPECIFICATIONS | Z3040×11/I |
| Max.drilling dia(mm) | 40 |
| Headstock level migration distance (mm) | 715 |
| Distance from spindle axis to column surface (mm) | 330-1050 |
| Under the main axle is away from the end surface to the basic skills left side of (mm) | 170-1110 |
| Rocking shaft heave height(mm) | 700 |
| Rocker vertical moving speed(m/mm) | 1.32 |
| Rocker rotary angle ° | ±90° |
| Spindle taper(MT) | MT4 |
| Spindle speeds range(r/mm) | 40-1896 |
| Spindle speed steps | 12 |
| Spindle feeding range(mm/r) | 0.13-0.54 |
| Spindle feeding steps | 4 |
| Spindle travel(mm) | 260 |
| Maximum torque spindle(N) | 200 |
| Maximum resistance to the spindle(N) | 10000 |
| Spindle motor power(kw ) | 2.2 |
| Weight(kg) | 1600 |
| Overall dimensions of machine(L×W×H) (mm) | 1655×720×2200 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
